Optimization Results
The following sections provide detailed overview on the numerical an graphical results regarding the LossLC analysis.
Integrated Global Results
IGR [€ or t_CO2] |
cllp |
fine |
omf |
ppsa |
capex (ppcd) |
0 |
0 |
0 |
0 |
costs (sim) |
202437193 |
202259102 |
202259102 |
202259102 |
emissions (sim) |
441567 |
443159 |
443159 |
443159 |
opex (ppcd) |
202437194 |
202259103 |
202259103 |
202259103 |

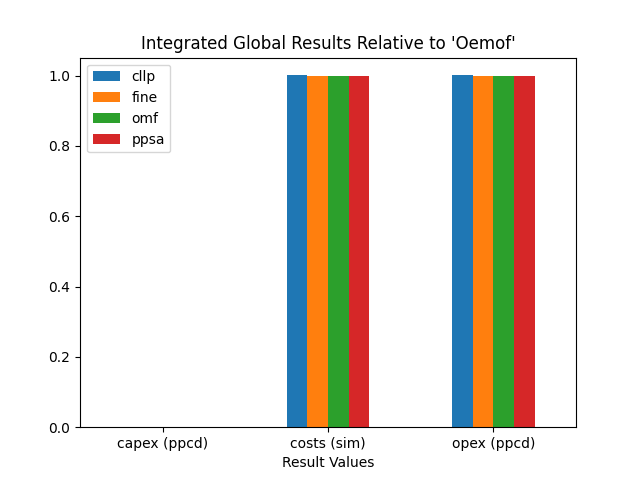

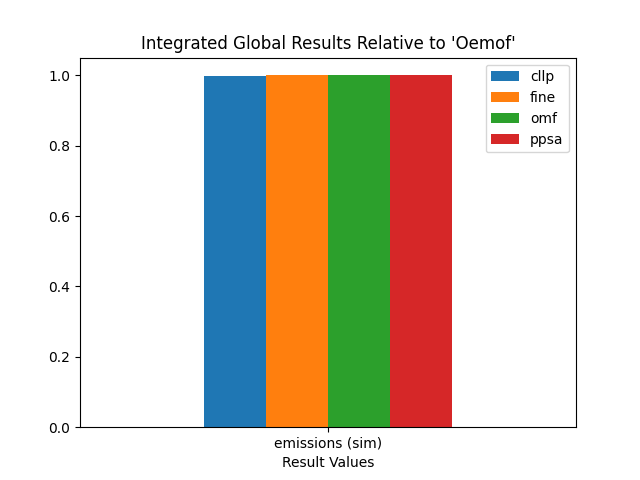

The Integrated Global Result bar plots are created using the code below.
Installed Capacity
Capacity [MW or MWh] |
cllp |
fine |
omf |
ppsa |
BHKW |
[13513.696969697, 8576.0] |
[13513.697, 8576.0] |
[8576.0, 13513.69697] |
[13513.69697, 8576.0000001923] |
Biogas |
variable |
variable |
variable |
variable |
Biogas plant |
25987 |
25987 |
25987 |
25987 |
Car charging Station |
3473 |
3473 |
3473 |
3473 |
Coal Supply |
102123 |
102123 |
102123 |
102123 |
Coal Supply Line |
variable |
variable |
variable |
variable |
Commercial Demand |
41969 |
41969 |
41969 |
41969 |
District Heating |
variable |
variable |
variable |
variable |
District Heating Demand |
50000 |
50000 |
50000 |
50000 |
Gas Station |
45325 |
45325 |
45325 |
variable |
Gaspipeline |
variable |
variable |
variable |
variable |
GuD |
26742 |
26742 |
26742 |
26742 |
HKW |
[61273.96, 24509.584] |
[61273.998, 24509.599] |
[61273.96, 24509.6] |
[61273.96, 24509.584] |
HKW2 |
43913 |
43913 |
43913 |
43913 |
High Voltage Grid |
variable |
variable |
variable |
variable |
High Voltage Transfer Grid |
variable |
0 |
variable |
72141 |
Household Demand |
36177 |
36177 |
36177 |
36177 |
Industrial Demand |
63093 |
63093 |
63093 |
63093 |
Low Voltage Grid |
variable |
variable |
variable |
variable |
Low Voltage Transfer Grid |
variable |
54703 |
variable |
54703 |
Medium Voltage Grid |
variable |
variable |
variable |
variable |
Offshore Wind Power |
18760 |
18760 |
18760 |
18760 |
Onshore Wind Power |
66599 |
66599 |
66599 |
66599 |
Power to Heat |
50000 |
50000 |
50000 |
50000 |
Solar Panel |
99605 |
99605 |
99605 |
99605 |
Solar Thermal |
14343 |
14343 |
14343 |
14343 |
High Voltage Grid Summed Loads
Load-High Voltage Grid [MW] |
cllp |
fine |
omf |
ppsa |
GuD |
-116538 |
-121996 |
-121996 |
-121996 |
HKW |
-235375 |
-237669 |
-237669 |
-237669 |
HKW2 |
-205713 |
-201601 |
-201601 |
-201601 |
High Voltage Transfer Grid |
0 |
0 |
0 |
0 |
High Voltage Transfer Grid |
867448 |
871089 |
871089 |
871089 |
Offshore Wind Power |
-309821 |
-309821 |
-309821 |
-309821 |
Medium Voltage Grid Summed Loads
Load-Medium Voltage Grid [MW] |
cllp |
fine |
omf |
ppsa |
Car charging Station |
37026 |
37026 |
37026 |
37026 |
High Voltage Transfer Grid |
-867448 |
-871089 |
-871089 |
-871089 |
High Voltage Transfer Grid |
0 |
0 |
0 |
0 |
Industrial Demand |
1229008 |
1229008 |
1229008 |
1229008 |
Low Voltage Transfer Grid |
-111125 |
-111125 |
-111125 |
-111125 |
Low Voltage Transfer Grid |
640388 |
644028 |
644028 |
644028 |
Onshore Wind Power |
-1099866 |
-1099866 |
-1099866 |
-1099866 |
Power to Heat |
172017 |
172017 |
172017 |
172017 |
Low Voltage Grid Summed Loads
Load-Low Voltage Grid [MW] |
cllp |
fine |
omf |
ppsa |
BHKW |
-12414 |
-8774 |
-8774 |
-8774 |
Commercial Demand |
582459 |
582459 |
582459 |
582459 |
Household Demand |
552564 |
552564 |
552564 |
552564 |
Low Voltage Transfer Grid |
-640388 |
-644028 |
-644028 |
-644028 |
Low Voltage Transfer Grid |
111125 |
111125 |
111125 |
111125 |
Solar Panel |
-593346 |
-593346 |
-593346 |
-593346 |
District Heating Summed Loads
Load-District Heating [MW] |
cllp |
fine |
omf |
ppsa |
BHKW |
-19562 |
-13825 |
-13825 |
-13825 |
District Heating Demand |
865459 |
865459 |
865459 |
865459 |
HKW |
-588437 |
-594174 |
-594174 |
-594174 |
Power to Heat |
-172017 |
-172017 |
-172017 |
-172017 |
Solar Thermal |
-85441 |
-85441 |
-85441 |
-85441 |
