Storage Example (Brief)
This example briefly illustrates the auto comparative features of the
analyze module. For a more detailed example please refer to
the Fully Parameterized Working Example (Detailed).
Initial code to do the comparison
>>> # change spellings_logging_level to debug to declutter output
>>> import tessif.frused.configurations as configurations
>>> configurations.spellings_logging_level = 'debug'
>>> # Import hardcoded tessif energy system using the example hub:
>>> import tessif.examples.data.tsf.py_hard as tsf_examples
>>> # Choose the underlying energy system
>>> tsf_es = tsf_examples.create_storage_example()
>>> # write it to disk, so the comparatier can read it out
>>> import os
>>> from tessif.frused.paths import write_dir
>>> #
>>> output_msg = tsf_es.to_hdf5(
... directory=os.path.join(write_dir, 'tsf'),
... filename='storage_comparison.hdf5',
... )
>>> # let the comparatier to the auto comparison:
>>> import tessif.analyze, tessif.parse
>>> #
>>> comparatier = tessif.analyze.Comparatier(
... path=os.path.join(write_dir, 'tsf', 'storage_comparison.hdf5'),
... parser=tessif.parse.hdf5,
... models=('oemof', 'pypsa', 'fine', 'calliope'),
... )
Code accessing the results
Following section provides examples on how to use the
Comparatier interface to access the
auto generated comparison results.
Models
>>> # show the models compared:
>>> for model in sorted(comparatier.models):
... print(model)
cllp
fine
omf
ppsa

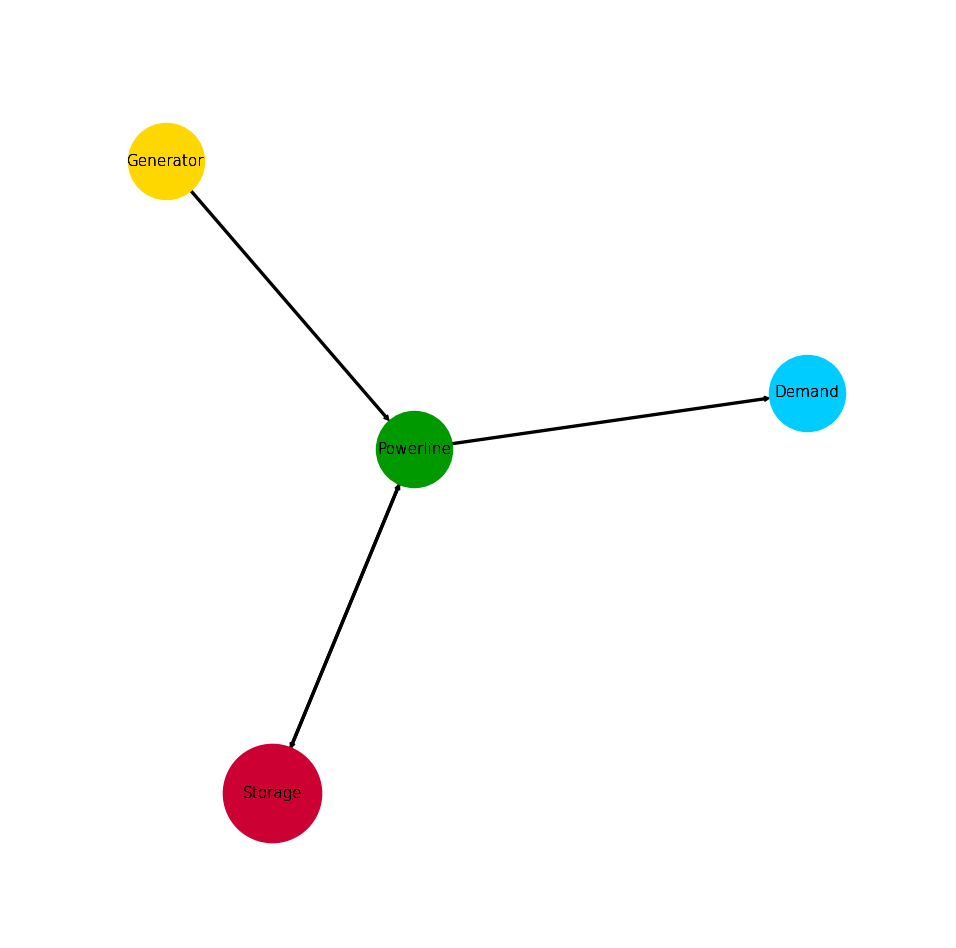

Energy System Graph
>>> import matplotlib.pyplot as plt
>>> import tessif.visualize.nxgrph as nxv
>>> grph = comparatier.graph
>>> drawing_data = nxv.draw_graph(
... grph,
... node_color={
... 'Powerline': '#009900',
... 'Storage': '#cc0033',
... 'Demand': '#00ccff',
... 'Generator': '#ffD700',
... },
... )
>>> # plt.show() # commented out for simpler doctesting
Comparative Model Results
Following sections show how to utilize to built-in
ComparativeResultier to access results conveniently
among models.
Installed Capacity Results
>>> print(comparatier.comparative_results.capacities['Storage'])
cllp 27.0
fine 27.0
omf 27.0
ppsa 27.0
Name: Storage, dtype: float64
Load Results
>>> print(comparatier.comparative_results.loads['Powerline'])
cllp fine omf ppsa
Powerline Generator Storage Demand Storage Generator Storage Demand Storage Generator Storage Demand Storage Generator Storage Demand Storage
1990-07-13 00:00:00 -19.0 -0.0 10.0 9.0 -19.0 -0.0 10.0 9.0 -19.0 -0.0 10.0 9.0 -19.0 -0.0 10.0 9.0
1990-07-13 01:00:00 -19.0 -0.0 10.0 9.0 -19.0 -0.0 10.0 9.0 -19.0 -0.0 10.0 9.0 -19.0 -0.0 10.0 9.0
1990-07-13 02:00:00 -19.0 -0.0 7.0 12.0 -19.0 -0.0 7.0 12.0 -19.0 -0.0 7.0 12.0 -19.0 -0.0 7.0 12.0
1990-07-13 03:00:00 -0.0 -10.0 10.0 0.0 -0.0 -10.0 10.0 0.0 -0.0 -10.0 10.0 0.0 -0.0 -10.0 10.0 0.0
1990-07-13 04:00:00 -0.0 -10.0 10.0 0.0 -0.0 -10.0 10.0 0.0 -0.0 -10.0 10.0 0.0 -0.0 -10.0 10.0 0.0
State of Charge Results
>>> print(comparatier.comparative_results.socs['Storage'])
Storage cllp fine omf ppsa
1990-07-13 00:00:00 8.100000 0.0000 8.100000 8.100000
1990-07-13 01:00:00 16.200000 8.1000 16.200000 16.200000
1990-07-13 02:00:00 27.000000 16.2000 27.000000 27.000000
1990-07-13 03:00:00 15.888889 27.0000 15.888889 15.888889
1990-07-13 04:00:00 4.777778 15.8889 4.777778 4.777778
Flow Cost Results
>>> print(comparatier.comparative_results.costs[('Generator', 'Powerline')])
cllp 2.0
fine 2.0
omf 2.0
ppsa 2.0
Name: (Generator, Powerline), dtype: float64
>>> print(comparatier.comparative_results.costs[('Powerline', 'Demand')])
cllp 0.0
fine 0.0
omf 0.0
ppsa 0.0
Name: (Powerline, Demand), dtype: float64
>>> print(comparatier.comparative_results.costs[('Storage', 'Powerline')])
cllp 1.0
fine 1.0
omf 1.0
ppsa 1.0
Name: (Storage, Powerline), dtype: float64
>>> print(comparatier.comparative_results.costs[('Powerline', 'Storage')])
cllp 0.0
fine 0.0
omf 0.0
ppsa 0.0
Name: (Powerline, Storage), dtype: float64
Flow Emission Results
>>> print(comparatier.comparative_results.emissions[('Generator', 'Powerline')])
cllp 0.0
fine 0.0
omf 0.0
ppsa 0.0
Name: (Generator, Powerline), dtype: float64
>>> print(comparatier.comparative_results.emissions[('Powerline', 'Demand')])
cllp 0.0
fine 0.0
omf 0.0
ppsa 0.0
Name: (Powerline, Demand), dtype: float64
>>> print(comparatier.comparative_results.emissions[('Storage', 'Powerline')])
cllp 0.5
fine 0.5
omf 0.5
ppsa 0.5
Name: (Storage, Powerline), dtype: float64
>>> print(comparatier.comparative_results.emissions[('Powerline', 'Storage')])
cllp 0.0
fine 0.0
omf 0.0
ppsa 0.0
Name: (Powerline, Storage), dtype: float64
Installed Capacity Results
>>> print(comparatier.comparative_results.capacities['Storage'])
cllp 27.0
fine 27.0
omf 27.0
ppsa 27.0
Name: Storage, dtype: float64
Original Capacity Values
>>> print(comparatier.comparative_results.original_capacities['Storage'])
cllp 0.0
fine 0.0
omf 0.0
ppsa 0.0
Name: Storage, dtype: float64
Expansion Cost Results
>>> print(comparatier.comparative_results.expansion_costs['Storage'])
cllp 0.0
fine 0.0
omf 0.0
ppsa 0.0
Name: Storage, dtype: float64
Integrated Global Results (IGR)
Following section demonstrate how to access the
integrated global results of the models compared.
>>> # show the integrated global results of the storage example:
>>> comparatier.integrated_global_results.drop(
... ['time (s)', 'memory (MB)'], axis='index')
cllp fine omf ppsa
emissions (sim) 10.0 10.0 10.0 10.0
costs (sim) 134.0 134.0 134.0 134.0
opex (ppcd) 134.0 134.0 134.0 134.0
capex (ppcd) 0.0 0.0 0.0 0.0
Memory and timing results are dropped because they vary slightly between runs. The original results look something like:
comparatier.integrated_global_results
cllp fine omf ppsa
emissions (sim) 10.0 10.0 10.0 10.0
costs (sim) 134.0 134.0 134.0 134.0
opex (ppcd) 134.0 134.0 134.0 134.0
capex (ppcd) 0.0 0.0 0.0 0.0
time (s) 0.5 0.7 0.4 0.9
memory (MB) 0.9 1.1 0.5 1.4
