Generic Grid Example (Brief)
This example briefly illustrates the auto comparative features of the
analyze module. For a more detailed example please refer to
the Fully Parameterized Working Example (Detailed).
Initial code to do the comparison
>>> # change spellings_logging_level to debug to declutter output
>>> import tessif.frused.configurations as configurations
>>> configurations.spellings_logging_level = 'debug'
>>> # Import hardcoded tessif energy system using the example hub:
>>> import tessif.examples.data.tsf.py_hard as tsf_examples
>>> # Choose the underlying energy system
>>> tsf_es = tsf_examples.create_grid_es()
>>> # write it to disk, so the comparatier can read it out
>>> import os
>>> from tessif.frused.paths import write_dir
>>> #
>>> output_msg = tsf_es.to_hdf5(
... directory=os.path.join(write_dir, 'tsf'),
... filename='grid_comparison.hdf5',
... )
>>> # let the comparatier to the auto comparison:
>>> import tessif.analyze, tessif.parse
>>> #
>>> comparatier = tessif.analyze.Comparatier(
... path=os.path.join(write_dir, 'tsf', 'grid_comparison.hdf5'),
... parser=tessif.parse.hdf5,
... models=('oemof', 'pypsa', 'fine', 'calliope'),
... )
Code accessing the results
Following section provides examples on how to use the
Comparatier interface to access the
auto generated comparison results.
Models
>>> # show the models compared:
>>> for model in sorted(comparatier.models):
... print(model)
cllp
fine
omf
ppsa

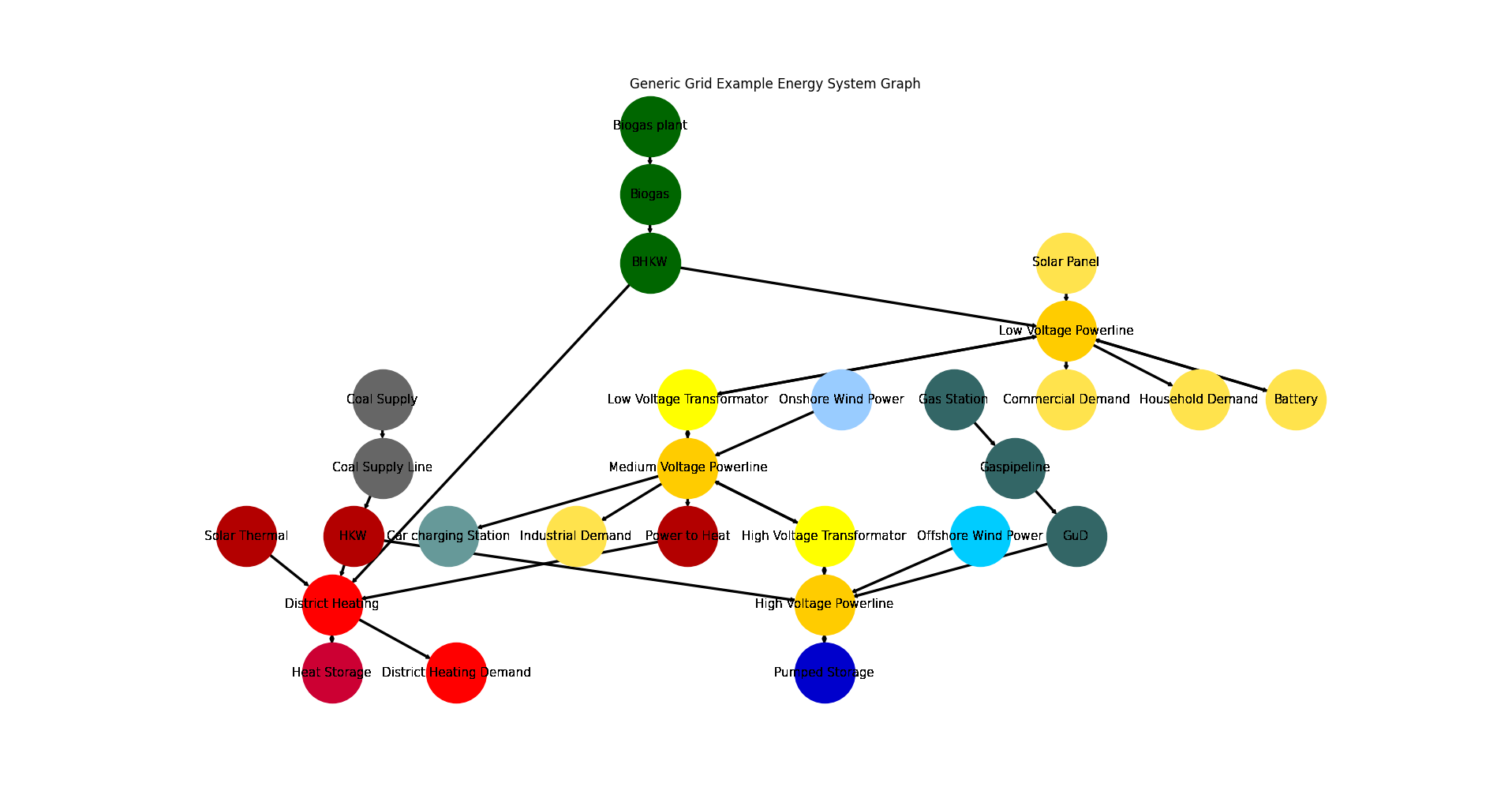

Energy System Graph
>>> import matplotlib.pyplot as plt
>>> import tessif.visualize.nxgrph as nxv
>>> grph = comparatier.graph
>>> drawing_data = nxv.draw_graph(
... grph,
... node_color={
... 'Coal Supply': '#666666',
... 'Coal Supply Line': '#666666',
... 'HKW': '#b30000',
... 'Solar Thermal': '#b30000',
... 'Heat Storage': '#cc0033',
... 'District Heating': 'Red',
... 'District Heating Demand': 'Red',
... 'Power to Heat': '#b30000',
... 'Biogas plant': '#006600',
... 'Biogas': '#006600',
... 'BHKW': '#006600',
... 'Onshore Wind Power': '#99ccff',
... 'Offshore Wind Power': '#00ccff',
... 'Gas Station': '#336666',
... 'Gaspipeline': '#336666',
... 'GuD': '#336666',
... 'Solar Panel': '#ffe34d',
... 'Commercial Demand': '#ffe34d',
... 'Household Demand': '#ffe34d',
... 'Industrial Demand': '#ffe34d',
... 'Battery': '#ffe34d',
... 'Car charging Station': '#669999',
... 'Low Voltage Powerline': '#ffcc00',
... 'Medium Voltage Powerline': '#ffcc00',
... 'High Voltage Powerline': '#ffcc00',
... 'High Voltage Transformator': 'yellow',
... 'Low Voltage Transformator': 'yellow',
... 'Pumped Storage': '#0000cc',
... },
... title='Generic Grid Example Energy System Graph',
... )
>>> # plt.show() # commented out for simpler doctesting
Comparative Model Results
Following sections show how to utilize to built-in
ComparativeResultier to access results conveniently
among models.
Splitting the result dataframes for better printabilitiy:
>>> cllp_results = comparatier.optimization_results['cllp']
>>> fn_results = comparatier.optimization_results['fine']
>>> omf_results = comparatier.optimization_results['omf']
>>> ppsa_results = comparatier.optimization_results['ppsa']
Load Results
>>> print(omf_results.node_load['High Voltage Powerline'])
High Voltage Powerline GuD HKW High Voltage Transformator Offshore Wind Power Pumped Storage High Voltage Transformator Pumped Storage
1990-07-13 00:00:00 -0.00000 -175.00000 -0.0 -120.0 -23.500000 318.50000 0.000000
1990-07-13 01:00:00 -0.00000 -168.58542 -0.0 -140.0 -0.000000 258.00000 50.585418
1990-07-13 02:00:00 -149.02545 -175.00000 -0.0 -70.0 -62.474189 456.49964 0.000000
>>> print(ppsa_results.node_load['High Voltage Powerline'])
High Voltage Powerline GuD HKW High Voltage Transformator Offshore Wind Power Pumped Storage High Voltage Transformator Pumped Storage
1990-07-13 00:00:00 -0.0000 -157.179967 -0.0 -120.0 -7.683668 284.86364 0.0
1990-07-13 01:00:00 -0.0000 -84.363636 -0.0 -140.0 -0.000000 224.36364 0.0
1990-07-13 02:00:00 -134.0473 -175.000000 -0.0 -70.0 -37.316332 416.36364 0.0
>>> print(fn_results.node_load['High Voltage Powerline'])
High Voltage Powerline GuD HKW High Voltage Transformator Offshore Wind Power Pumped Storage High Voltage Transformator Pumped Storage
1990-07-13 00:00:00 -30.985997 -143.377640 -0.0 -120.0 -0.0 294.36364 0.0
1990-07-13 01:00:00 -0.000000 -103.018867 -0.0 -140.0 -0.0 243.01887 0.0
1990-07-13 02:00:00 -153.641166 -175.000000 -0.0 -70.0 -0.0 398.64117 0.0
>>> print(cllp_results.node_load['High Voltage Powerline'])
High Voltage Powerline GuD HKW High Voltage Transformator Offshore Wind Power Pumped Storage High Voltage Transformator Pumped Storage
1990-07-13 00:00:00 -0.0000 -175.00000 -0.0 -120.0 -23.175285 318.17528 0.000000
1990-07-13 01:00:00 -0.0000 -152.56397 -0.0 -140.0 -0.000000 249.37320 43.190765
1990-07-13 02:00:00 -184.5894 -175.00000 -0.0 -70.0 -56.809235 486.39864 0.000000
>>> print(omf_results.node_inflows['Medium Voltage Powerline'])
Medium Voltage Powerline High Voltage Transformator Low Voltage Transformator Onshore Wind Power
1990-07-13 00:00:00 318.50000 0.0 60.0
1990-07-13 01:00:00 258.00000 0.0 80.0
1990-07-13 02:00:00 456.49964 0.0 34.0
>>> print(ppsa_results.node_inflows['Medium Voltage Powerline'])
Medium Voltage Powerline High Voltage Transformator Low Voltage Transformator Onshore Wind Power
1990-07-13 00:00:00 284.86364 0.0 60.0
1990-07-13 01:00:00 224.36364 0.0 80.0
1990-07-13 02:00:00 416.36364 0.0 34.0
>>> print(fn_results.node_inflows['Medium Voltage Powerline'])
Medium Voltage Powerline High Voltage Transformator Low Voltage Transformator Onshore Wind Power
1990-07-13 00:00:00 294.36364 0.0 60.0
1990-07-13 01:00:00 243.01887 0.0 80.0
1990-07-13 02:00:00 398.64117 0.0 34.0
>>> print(cllp_results.node_inflows['Medium Voltage Powerline'])
Medium Voltage Powerline High Voltage Transformator Low Voltage Transformator Onshore Wind Power
1990-07-13 00:00:00 318.17528 0.0 60.0
1990-07-13 01:00:00 249.37320 0.0 80.0
1990-07-13 02:00:00 486.39864 0.0 34.0
Note
Note the small differences between models. These stem from the fact that transformers, chps and storages are modeled slightly differently and thus are parameterized differently between models.
The Overall Results however are quite similar.
Integrated Global Results (IGR)
Following section demonstrate how to access the
integrated global results of the models compared.
>>> # show the integrated global results of the storage example:
>>> comparatier.integrated_global_results.drop(
... ['time (s)', 'memory (MB)'], axis='index')
cllp fine omf ppsa
emissions (sim) 16979.0 16573.0 17032.0 15937.0
costs (sim) 23440.0 22339.0 23215.0 21071.0
opex (ppcd) 23440.0 22339.0 23215.0 21071.0
capex (ppcd) 0.0 0.0 0.0 0.0
Memory and timing results are dropped because they vary slightly between runs. The original results look something like:
comparatier.integrated_global_results
cllp fine omf ppsa
emissions (sim) 16979.0 16599.0 17032.0 15937.0
costs (sim) 23440.0 22347.0 23215.0 21071.0
opex (ppcd) 23440.0 22347.0 23215.0 21071.0
capex (ppcd) 0.0 0.0 0.0 0.0
time (s) 3.2 2.5 2.0 2.5
memory (MB) 8.5 2.9 1.8 2.0
