2-Transformers Grid Example (Brief)
This example briefly illustrates the auto comparative features of the
analyze module. For a more detailed example please refer to
the Fully Parameterized Working Example (Detailed).
Commitment Scenario
The underlying model-scenario-combination emulates common grid (congestion) behaviours, during its 6 timesteps:
Everything provided by HV-Source
Too much provided by HV-Source; H2M grid congests and MV-BS and MV-XS need to compensate
Too little provided, so MV-BS needs to provide
Everything provided by MV-Source
Too much provided by MV-Source, M2H grid congests and HV-BS and HV-XS need to compensate
Too little provided, so MV-BS needs to provide
Initial code to do the comparison
>>> SOFTWARES = ('calliope', 'fine', 'oemof', 'pypsa',)
>>> TRANS_OPS = {
... "ppsa": {
... "forced_links": ("H2M", "M2H"),
... "excess_sinks": ("HV-XS", "MV-XS"),
... }
... }
>>> # change spellings_logging_level to debug to declutter output
>>> import tessif.frused.configurations as configurations # nopep8
>>> configurations.spellings_logging_level = 'debug'
>>> # Import hardcoded tessif energy system using the example hub:
>>> import tessif.examples.data.tsf.py_hard as tsf_examples # nopep8
>>> # Choose the underlying energy system
>>> tsf_es = tsf_examples.create_simple_transformer_grid_es()
>>> # write it to disk, so the comparatier can read it out
>>> import os # nopep8
>>> from tessif.frused.paths import write_dir # nopep8
>>> #
>>> output_msg = tsf_es.to_cfg(
... directory=os.path.join(write_dir, 'tsf', "two_transformers_grid"),
... )
>>> # let the comparatier to the auto comparison:
>>> import tessif.analyze, tessif.parse # nopep8
>>> #
>>> comparatier = tessif.analyze.Comparatier(
... path=os.path.join(write_dir, 'tsf', 'two_transformers_grid'),
... parser=tessif.parse.flat_config_folder,
... models=SOFTWARES,
... trans_ops=TRANS_OPS,
... )

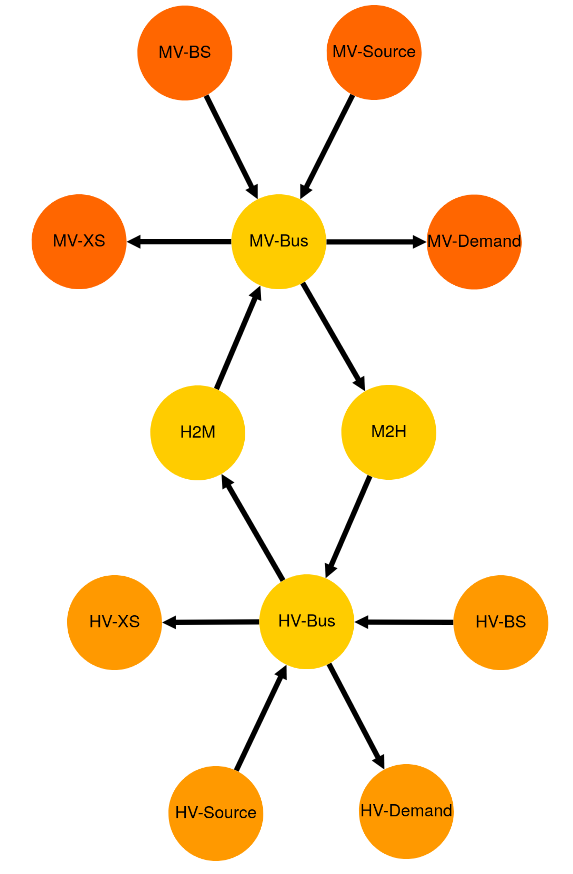

Energy System Graph
>>> import tessif.visualize.dcgrph as dcv
>>> app = dcv.draw_generic_graph(
... energy_system=comparatier.baseline_es,
... color_group={
... 'HV-Demand': '#ff9900',
... 'HV-BS': '#ff9900',
... 'HV-XS': '#ff9900',
... 'HV-Source': '#ff9900',
... 'H2M': '#ffcc00',
... 'M2H': '#ffcc00',
... 'MV-Bus': '#ffcc00',
... 'HV-Bus': '#ffcc00',
... 'MV-Demand': '#ff6600',
... 'MV-Source': '#ff6600',
... 'MV-BS': '#ff6600',
... 'MV-XS': '#ff6600',
... }
... )
>>> # app.run_server(debug=False) # commented out for simpler doctesting
High Voltage Bus Load Results
>>> from pandas import option_context # nopep8
>>> neat_print_pandas = option_context(
... 'display.max_rows', 10,
... 'display.max_columns', 9000,
... 'display.width', 70,
... )
>>> with neat_print_pandas:
... print(comparatier.comparative_results.loads["HV-Bus"])
cllp \
HV-Bus HV-BS HV-Source M2H H2M HV-Demand HV-XS
1990-07-13 00:00:00 -0.0 -22.0 -0.0 12.0 10.0 0.0
1990-07-13 01:00:00 -0.0 -30.0 -0.0 12.0 10.0 8.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
1990-07-13 04:00:00 -2.0 -0.0 -10.0 0.0 12.0 0.0
1990-07-13 05:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
fine \
HV-Bus HV-BS HV-Source M2H H2M HV-Demand HV-XS
1990-07-13 00:00:00 -0.0 -22.0 -0.0 12.0 10.0 0.0
1990-07-13 01:00:00 -0.0 -30.0 -0.0 12.0 10.0 8.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
1990-07-13 04:00:00 -2.0 -0.0 -10.0 0.0 12.0 0.0
1990-07-13 05:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
omf \
HV-Bus HV-BS HV-Source M2H H2M HV-Demand HV-XS
1990-07-13 00:00:00 -0.0 -22.0 -0.0 12.0 10.0 0.0
1990-07-13 01:00:00 -0.0 -30.0 -0.0 12.0 10.0 8.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
1990-07-13 04:00:00 -2.0 -0.0 -10.0 0.0 12.0 0.0
1990-07-13 05:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
ppsa
HV-Bus HV-BS HV-Source M2H H2M HV-Demand HV-XS
1990-07-13 00:00:00 -0.0 -22.0 -0.0 12.0 10.0 0.0
1990-07-13 01:00:00 -0.0 -30.0 -0.0 12.0 10.0 8.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
1990-07-13 04:00:00 -2.0 -0.0 -10.0 0.0 12.0 0.0
1990-07-13 05:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
Medium Voltage Bus Load Results
>>> with neat_print_pandas:
... print(comparatier.comparative_results.loads["MV-Bus"])
cllp \
MV-Bus H2M MV-BS MV-Source M2H MV-Demand MV-XS
1990-07-13 00:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
1990-07-13 01:00:00 -10.0 -2.0 -0.0 0.0 12.0 0.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -21.0 11.0 10.0 0.0
1990-07-13 04:00:00 -0.0 -0.0 -30.0 11.0 10.0 9.0
1990-07-13 05:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
fine \
MV-Bus H2M MV-BS MV-Source M2H MV-Demand MV-XS
1990-07-13 00:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
1990-07-13 01:00:00 -10.0 -2.0 -0.0 0.0 12.0 0.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -21.0 11.0 10.0 0.0
1990-07-13 04:00:00 -0.0 -0.0 -30.0 11.0 10.0 9.0
1990-07-13 05:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
omf \
MV-Bus H2M MV-BS MV-Source M2H MV-Demand MV-XS
1990-07-13 00:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
1990-07-13 01:00:00 -10.0 -2.0 -0.0 0.0 12.0 0.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -21.0 11.0 10.0 0.0
1990-07-13 04:00:00 -0.0 -0.0 -30.0 11.0 10.0 9.0
1990-07-13 05:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
ppsa
MV-Bus H2M MV-BS MV-Source M2H MV-Demand MV-XS
1990-07-13 00:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
1990-07-13 01:00:00 -10.0 -2.0 -0.0 0.0 12.0 0.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -21.0 11.0 10.0 0.0
1990-07-13 04:00:00 -0.0 -0.0 -30.0 11.0 10.0 9.0
1990-07-13 05:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
Integrated Global Results
>>> # show the integrated global results of the chp example:
>>> comparatier.integrated_global_results.drop(
... ['time (s)', 'memory (MB)'], axis='index')
cllp fine omf ppsa
emissions (sim) 0.0 0.0 0.0 0.0
costs (sim) 410.0 410.0 410.0 410.0
opex (ppcd) 410.0 410.0 410.0 410.0
capex (ppcd) 0.0 0.0 0.0 0.0
Memory and timing results are dropped because they vary slightly between runs. The original results look something like:
comparatier.integrated_global_results
cllp fine omf ppsa
emissions (sim) 0.0 0.0 0.0 0.0
costs (sim) 410.0 410.0 410.0 410.0
opex (ppcd) 410.0 410.0 410.0 410.0
capex (ppcd) 0.0 0.0 0.0 0.0
time (s) 2.8 0.9 0.6 1.2
memory (MB) 2.9 1.4 0.8 1.6
Calculating Required Redispatch
Define a small helper function:
>>> def calc_redispatch(loads_spbus, loads_lackbus, uid_spsink, uid_lacksource):
... """Calc redispatch between surpluss bus and lack bus."""
... # select all indices where surplus sink gets used
... congestion_occasions = loads_spbus[loads_spbus[uid_spsink] > 0].index
...
... # access all lack bus loads, of prior selected indices
... pot_redispatch = loads_lackbus.loc[congestion_occasions][uid_lacksource]
...
... # redispatch = the amount of suprlus energy provided on timesteps where
... # excess energy was dumped
... redispatch = pot_redispatch[pot_redispatch.abs() > 0].abs()
...
... return redispatch
Acces load resultiers for more convenience:
>>> hvbus = comparatier.comparative_results.loads["HV-Bus"]["cllp"]
>>> mvbus = comparatier.comparative_results.loads["MV-Bus"]["fine"]
Redispatch high -> medium
>>> print(calc_redispatch(hvbus, mvbus, "HV-XS", "MV-BS"))
1990-07-13 01:00:00 2.0
Name: MV-BS, dtype: float64
Redispatch medium -> high
>>> print(calc_redispatch(mvbus, hvbus, "MV-XS", "HV-BS"))
1990-07-13 04:00:00 2.0
Name: HV-BS, dtype: float64
Expansion Scenario
The two transformers grid model-scenario-combination can be changed into an
expansion scenario by overriding the respective default argument expansion
as can bee seen below.
The modifications alters the second of the six timesteps from above:
Everything provided by HV-Source
Too much provided by HV-Source; It’s enough to also satisfy the MV-Demand, since the high to medium connection gets expanded. The HV-XS takes the excess indicating the amount of surpluss that would get capped in a real world application.
Too little provided, so MV-BS needs to provide
Everything provided by MV-Source
Too much provided by MV-Source, M2H grid congests and HV-BS and HV-XS need to compensate
Too little provided, so MV-BS needs to provide
It does so by allowing the connection High -> Medium Voltage to be expanded at the cost of 5 per capacity. At the same time the Medium -> High voltage connection can be expanded at the cost of 100 per capacity unit.
This leads to the first beeing expanded, avoiding the need of redispatch. The later however will not be expanded, since redispatching from medium to high is more cost efficient in this case.
Initial code to do the comparison
>>> SOFTWARES = ('calliope', 'fine', 'oemof', 'pypsa',)
>>> TRANS_OPS = {
... "ppsa": {
... "forced_links": ("H2M", "M2H"),
... "excess_sinks": ("HV-XS", "MV-XS"),
... }
... }
>>> # change spellings_logging_level to debug to declutter output
>>> import tessif.frused.configurations as configurations # nopep8
>>> configurations.spellings_logging_level = 'debug'
>>> # Import hardcoded tessif energy system using the example hub:
>>> import tessif.examples.data.tsf.py_hard as tsf_examples # nopep8
>>> # Choose the underlying energy system
>>> tsf_es = tsf_examples.create_simple_transformer_grid_es(expansion=True)
>>> # write it to disk, so the comparatier can read it out
>>> import os # nopep8
>>> from tessif.frused.paths import write_dir # nopep8
>>> #
>>> output_msg = tsf_es.to_cfg(
... directory=os.path.join(write_dir, 'tsf', "two_transformers_grid"),
... )
>>> # let the comparatier to the auto comparison:
>>> import tessif.analyze, tessif.parse # nopep8
>>> #
>>> comparatier = tessif.analyze.Comparatier(
... path=os.path.join(write_dir, 'tsf', 'two_transformers_grid'),
... parser=tessif.parse.flat_config_folder,
... models=SOFTWARES,
... trans_ops=TRANS_OPS,
... )
High Voltage Bus Load Results
>>> from pandas import option_context # nopep8
>>> neat_print_pandas = option_context(
... 'display.max_rows', 10,
... 'display.max_columns', 9000,
... 'display.width', 70,
... )
>>> print(comparatier.comparative_results.loads["HV-Bus"]["cllp"])
HV-Bus HV-BS HV-Source M2H H2M HV-Demand HV-XS
1990-07-13 00:00:00 -0.0 -22.0 -0.0 12.0 10.0 0.0
1990-07-13 01:00:00 -0.0 -30.0 -0.0 14.4 10.0 5.6
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
1990-07-13 04:00:00 -2.0 -0.0 -10.0 0.0 12.0 0.0
1990-07-13 05:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
>>> print(comparatier.comparative_results.loads["HV-Bus"]["fine"])
HV-Bus HV-BS HV-Source M2H H2M HV-Demand HV-XS
1990-07-13 00:00:00 -0.000000 -22.0 -0.000000 12.0 10.0 0.0
1990-07-13 01:00:00 -0.000000 -30.0 -0.000000 14.4 10.0 5.6
1990-07-13 02:00:00 -0.000000 -10.0 -0.000000 0.0 10.0 0.0
1990-07-13 03:00:00 -0.909091 -0.0 -9.090909 0.0 10.0 0.0
1990-07-13 04:00:00 -2.909091 -0.0 -9.090909 0.0 12.0 0.0
1990-07-13 05:00:00 -10.000000 -0.0 -0.000000 0.0 10.0 0.0
>>> print(comparatier.comparative_results.loads["HV-Bus"]["omf"])
HV-Bus HV-BS HV-Source M2H H2M HV-Demand HV-XS
1990-07-13 00:00:00 -0.0 -22.0 -0.0 12.0 10.0 0.0
1990-07-13 01:00:00 -0.0 -30.0 -0.0 14.4 10.0 5.6
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
1990-07-13 04:00:00 -2.0 -0.0 -10.0 0.0 12.0 0.0
1990-07-13 05:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
>>> print(comparatier.comparative_results.loads["HV-Bus"]["ppsa"])
HV-Bus HV-BS HV-Source M2H H2M HV-Demand HV-XS
1990-07-13 00:00:00 -0.0 -22.0 -0.0 12.0 10.0 0.0
1990-07-13 01:00:00 -0.0 -30.0 -0.0 14.4 10.0 5.6
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
1990-07-13 04:00:00 -2.0 -0.0 -10.0 0.0 12.0 0.0
1990-07-13 05:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
Medium Voltage Bus Load Results
>>> with neat_print_pandas:
... print(comparatier.comparative_results.loads["MV-Bus"])
cllp \
MV-Bus H2M MV-BS MV-Source M2H MV-Demand MV-XS
1990-07-13 00:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
1990-07-13 01:00:00 -12.0 -0.0 -0.0 0.0 12.0 0.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -21.0 11.0 10.0 0.0
1990-07-13 04:00:00 -0.0 -0.0 -30.0 11.0 10.0 9.0
1990-07-13 05:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
fine \
MV-Bus H2M MV-BS MV-Source M2H MV-Demand MV-XS
1990-07-13 00:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
1990-07-13 01:00:00 -12.0 -0.0 -0.0 0.0 12.0 0.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -21.0 10.0 10.0 1.0
1990-07-13 04:00:00 -0.0 -0.0 -30.0 10.0 10.0 10.0
1990-07-13 05:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
omf \
MV-Bus H2M MV-BS MV-Source M2H MV-Demand MV-XS
1990-07-13 00:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
1990-07-13 01:00:00 -12.0 -0.0 -0.0 0.0 12.0 0.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -21.0 11.0 10.0 0.0
1990-07-13 04:00:00 -0.0 -0.0 -30.0 11.0 10.0 9.0
1990-07-13 05:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
ppsa
MV-Bus H2M MV-BS MV-Source M2H MV-Demand MV-XS
1990-07-13 00:00:00 -10.0 -0.0 -0.0 0.0 10.0 0.0
1990-07-13 01:00:00 -12.0 -0.0 -0.0 0.0 12.0 0.0
1990-07-13 02:00:00 -0.0 -10.0 -0.0 0.0 10.0 0.0
1990-07-13 03:00:00 -0.0 -0.0 -21.0 11.0 10.0 0.0
1990-07-13 04:00:00 -0.0 -0.0 -30.0 11.0 10.0 9.0
1990-07-13 05:00:00 -0.0 -0.0 -10.0 0.0 10.0 0.0
Integrated Global Results
>>> # show the integrated global results of the chp example:
>>> comparatier.integrated_global_results.drop(
... ['time (s)', 'memory (MB)'], axis='index')
cllp fine omf ppsa
emissions (sim) 0.0 0.0 0.0 0.0
costs (sim) 376.0 423.0 376.0 376.0
opex (ppcd) 366.0 404.0 366.0 366.0
capex (ppcd) 10.0 18.0 10.0 10.0
Memory and timing results are dropped because they vary slightly between runs. The original results look something like:
comparatier.integrated_global_results
cllp fine omf ppsa
emissions (sim) 0.0 0.0 0.0 0.0
costs (sim) 376.0 423.0 376.0 376.0
opex (ppcd) 366.0 404.0 366.0 366.0
capex (ppcd) 10.0 18.0 10.0 10.0
time (s) 2.9 0.9 0.6 1.5
memory (MB) 2.9 1.4 0.9 1.7
Calculating Required Redispatch
Acces load resultiers for more convenience:
Fine Redispatch
>>> hvbus = comparatier.comparative_results.loads["HV-Bus"]["fine"]
>>> mvbus = comparatier.comparative_results.loads["MV-Bus"]["fine"]
Redispatch high -> medium
>>> print(calc_redispatch(hvbus, mvbus, "HV-XS", "MV-BS"))
Series([], Name: MV-BS, dtype: float64)
Redispatch medium -> high
>>> print(calc_redispatch(mvbus, hvbus, "MV-XS", "HV-BS"))
1990-07-13 03:00:00 0.909091
1990-07-13 04:00:00 2.909091
Name: HV-BS, dtype: float64
Others Redispatch
>>> hvbus = comparatier.comparative_results.loads["HV-Bus"]["cllp"]
>>> mvbus = comparatier.comparative_results.loads["MV-Bus"]["ppsa"]
Redispatch high -> medium
>>> print(calc_redispatch(hvbus, mvbus, "HV-XS", "MV-BS"))
Series([], Name: MV-BS, dtype: float64)
Redispatch medium -> high
>>> print(calc_redispatch(mvbus, hvbus, "MV-XS", "HV-BS"))
1990-07-13 04:00:00 2.0
Name: HV-BS, dtype: float64
