Combined Heat and Power Example (Brief)
This example briefly illustrates the auto comparative features of the
analyze module. For a more detailed example please refer to
the Fully Parameterized Working Example (Detailed).
Initial code to do the comparison
>>> # change spellings_logging_level to debug to declutter output
>>> import tessif.frused.configurations as configurations
>>> configurations.spellings_logging_level = 'debug'
>>> # Import hardcoded tessif energy system using the example hub:
>>> import tessif.examples.data.tsf.py_hard as tsf_examples
>>> # Choose the underlying energy system
>>> tsf_es = tsf_examples.create_chp()
>>> # write it to disk, so the comparatier can read it out
>>> import os
>>> from tessif.frused.paths import write_dir
>>> #
>>> output_msg = tsf_es.to_hdf5(
... directory=os.path.join(write_dir, 'tsf'),
... filename='chp_comparison.hdf5',
... )
>>> # let the comparatier do the auto comparison:
>>> import tessif.analyze, tessif.parse
>>> #
>>> comparatier = tessif.analyze.Comparatier(
... path=os.path.join(write_dir, 'tsf', 'chp_comparison.hdf5'),
... parser=tessif.parse.hdf5,
... models=('oemof', 'pypsa', 'fine', 'calliope'),
... )
Code accessing the results
Following section provides examples on how to use the
Comparatier interface to access the
auto generated comparison results.
Models
>>> # show the models compared:
>>> for model in sorted(comparatier.models):
... print(model)
cllp
fine
omf
ppsa
Energy System Objects
>>> # access the model based energy system objects
>>> # (type(es) printed here for doctesting)
>>> #
>>> for model, es in comparatier.energy_systems.items():
... print(f'{model}: {type(es)}')
cllp: <class 'calliope.core.model.Model'>
fine: <class 'FINE.energySystemModel.EnergySystemModel'>
omf: <class 'oemof.solph.network.energy_system.EnergySystem'>
ppsa: <class 'pypsa.components.Network'>

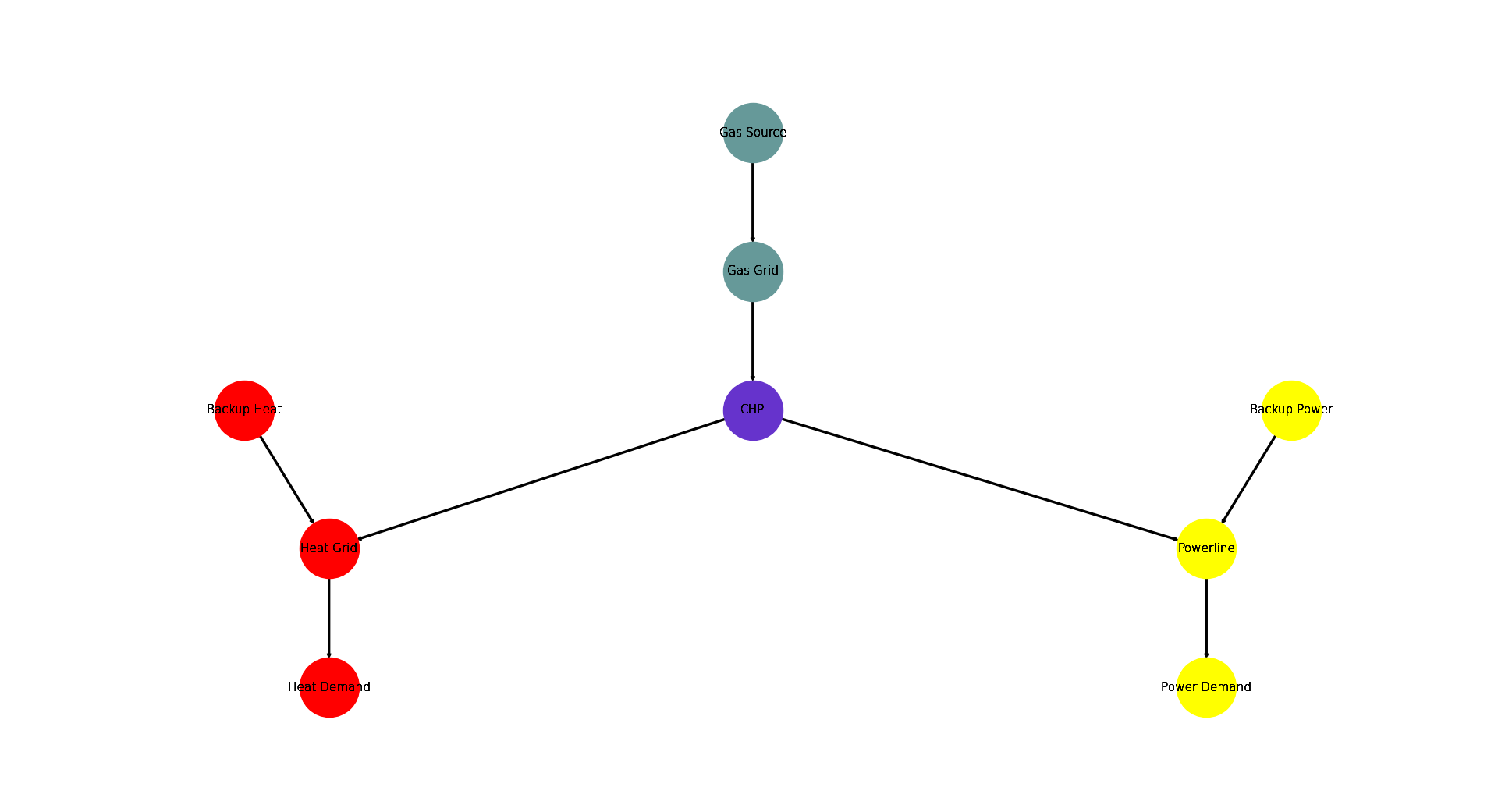

Energy System Graph
>>> import matplotlib.pyplot as plt
>>> import tessif.visualize.nxgrph as nxv
>>> grph = comparatier.graph
>>> drawing_data = nxv.draw_graph(
... grph,
... node_color={
... 'Gas Source': '#669999',
... 'Gas Grid': '#669999',
... 'CHP': '#6633cc',
... 'Backup Heat': 'red',
... 'Heat Grid': 'red',
... 'Heat Demand': 'red',
... 'Backup Power': 'yellow',
... 'Powerline': 'yellow',
... 'Power Demand': 'yellow',
... },
... )
>>> # plt.show() # commented out for simpler doctesting
Comparative Model Results
Following sections show how to utilize to built-in
ComparativeResultier to access results conveniently
among models.
Installed Capacity Results
>>> print(comparatier.comparative_results.capacities['CHP'])
CHP cllp fine omf ppsa
Heat Grid 6.666667 6.667 6.666667 6.666667
Powerline 10.000000 10.000 10.000000 10.000000
Original Capacity Values
>>> print(comparatier.comparative_results.original_capacities['CHP'])
CHP cllp fine omf ppsa
Heat Grid 0.0 0.0 0 0.0
Powerline 0.0 0.0 0 0.0
Expansion Cost Results
>>> print(comparatier.comparative_results.expansion_costs['CHP'])
CHP cllp fine omf ppsa
Heat Grid 0 0.0 0.0 0.0
Powerline 0 0.0 0.0 0.0
Flow Cost Results
>>> print(comparatier.comparative_results.costs[('CHP', 'Powerline')])
cllp 4.333333
fine 3.000000
omf 3.000000
ppsa 3.000000
Name: (CHP, Powerline), dtype: float64
>>> print(comparatier.comparative_results.costs[('CHP', 'Heat Grid')])
cllp 0.0
fine 2.0
omf 2.0
ppsa 2.0
Name: (CHP, Heat Grid), dtype: float64
Characteristic Value Results
>>> print(comparatier.comparative_results.cvs['CHP'])
CHP cllp fine omf ppsa
Heat Grid 1.0 1.0 1.0 1.0
Powerline 1.0 1.0 1.0 1.0
Flow Emission Results
>>> print(comparatier.comparative_results.emissions[('CHP', 'Powerline')])
cllp 4.0
fine 2.0
omf 2.0
ppsa 2.0
Name: (CHP, Powerline), dtype: float64
>>> print(comparatier.comparative_results.emissions[('CHP', 'Heat Grid')])
cllp 0.0
fine 3.0
omf 3.0
ppsa 3.0
Name: (CHP, Heat Grid), dtype: float64
Load Results
>>> print(comparatier.comparative_results.loads['CHP'])
cllp fine omf ppsa
CHP Gas Grid Heat Grid Powerline Gas Grid Heat Grid Powerline Gas Grid Heat Grid Powerline Gas Grid Heat Grid Powerline
1990-07-13 00:00:00 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0
1990-07-13 01:00:00 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0
1990-07-13 02:00:00 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0
1990-07-13 03:00:00 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0
Integrated Global Results (IGR)
Following section demonstrate how to access the
integrated global results of the models compared.
>>> # show the integrated global results of the chp example:
>>> comparatier.integrated_global_results.drop(
... ['time (s)', 'memory (MB)'], axis='index')
cllp fine omf ppsa
emissions (sim) 160.0 160.0 160.0 160.0
costs (sim) 307.0 307.0 307.0 307.0
opex (ppcd) 307.0 307.0 307.0 307.0
capex (ppcd) 0.0 0.0 0.0 0.0
Memory and timing results are dropped because they vary slightly between runs. The original results look something like:
comparatier.integrated_global_results
cllp fine omf ppsa
emissions (sim) 160.0 160.0 160.0 160.0
costs (sim) 307.0 307.0 307.0 307.0
opex (ppcd) 307.0 307.0 307.0 307.0
capex (ppcd) 0.0 0.0 0.0 0.0
time (s) 0.9 1.1 0.9 1.5
memory (MB) 1.1 1.1 0.7 1.6
Adding CO-2 Emission Constraints
>>> tsf_es = tsf_examples.create_chp()
>>> # use the existing constraints ...
>>> new_constraints = tsf_es.global_constraints.copy()
>>> # ... to modify them
>>> new_constraints['emissions'] = 100
Build the new energy system:
>>> from tessif.model.energy_system import AbstractEnergySystem # nopep8
>>> new_tsf_es = AbstractEnergySystem.from_components(
... uid='constrained_chp_example',
... components=tsf_es.nodes,
... timeframe=tsf_es.timeframe,
... global_constraints=new_constraints,
... )
Redo the comparison:
>>> # write it to disk, so the comparatier can read it out
>>> output_msg = new_tsf_es.to_hdf5(
... directory=os.path.join(write_dir, 'tsf'),
... filename='constrained_chp_example.hdf5',
... )
>>> # let the comparatier to the auto comparison:
>>> import functools # nopep8
>>> from tessif.frused.hooks.tsf import reparameterize_components # nopep8
>>> #
>>> comparatier = tessif.analyze.Comparatier(
... path=os.path.join(write_dir, 'tsf', 'constrained_chp_example.hdf5'),
... parser=tessif.parse.hdf5,
... models=('oemof', 'pypsa','fine', 'calliope'),
... hooks={
... 'pypsa': functools.partial(
... reparameterize_components,
... components={
... 'CHP': {
... 'flow_emissions': {'electricity': 0, 'heat': 0, 'gas': 0},
... },
... 'Gas Source': {
... # reallocating emission from chp outflows to gas source:
... 'flow_emissions': {'gas': 2*0.3+3*0.2},
... },
... }
... )
... },
... )
Constrained Results
CHP Loads
>>> print(comparatier.comparative_results.loads['CHP'])
cllp fine omf ppsa
CHP Gas Grid Heat Grid Powerline Gas Grid Heat Grid Powerline Gas Grid Heat Grid Powerline Gas Grid Heat Grid Powerline
1990-07-13 00:00:00 -16.666667 3.333333 5.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0 -0.000000 0.000000 0.0
1990-07-13 01:00:00 -0.000000 0.000000 0.0 -33.333333 6.666667 10.0 -16.666667 3.333333 5.0 -33.333333 6.666667 10.0
1990-07-13 02:00:00 -33.333333 6.666667 10.0 -16.666667 3.333333 5.0 -33.333333 6.666667 10.0 -33.333333 6.666667 10.0
1990-07-13 03:00:00 -33.333333 6.666667 10.0 -0.000000 0.000000 0.0 -0.000000 0.000000 0.0 -16.666667 3.333333 5.0
Integrated Global Results
>>> comparatier.integrated_global_results.drop(
... ['time (s)', 'memory (MB)'], axis='index')
cllp fine omf ppsa
emissions (sim) 100.0 100.0 100.0 100.0
costs (sim) 492.0 492.0 492.0 492.0
opex (ppcd) 492.0 492.0 492.0 492.0
capex (ppcd) 0.0 0.0 0.0 0.0
Memory and timing results are dropped because they vary slightly between runs. The original results look something like:
comparatier.integrated_global_results
cllp fine omf ppsa
emissions (sim) 100.0 100.0 100.0 100.0
costs (sim) 492.0 492.0 492.0 492.0
opex (ppcd) 492.0 492.0 492.0 492.0
capex (ppcd) 0.0 0.0 0.0 0.0
time (s) 1.3 1.1 0.9 1.5
memory (MB) 2.0 1.1 0.6 1.3
