Fully Parameterized Working Example (Detailed)
In contrast to the mwe, the fpwe differs (among other things) by utilizing a fixed timeseries to model a solar panel’s output.
Initial code to do the comparison
>>> # change spellings_logging_level to debug to declutter output
>>> import tessif.frused.configurations as configurations
>>> configurations.spellings_logging_level = 'debug'
>>> # Import hardcoded tessif energy system using the example hub:
>>> import tessif.examples.data.tsf.py_hard as tsf_examples
>>> # Choose the underlying energy system
>>> tsf_es = tsf_examples.create_fpwe()
>>> # write it to disk, so the comparatier can read it out
>>> import os
>>> from tessif.frused.paths import write_dir
>>> #
>>> output_msg = tsf_es.to_hdf5(
... directory=os.path.join(write_dir, 'tsf'),
... filename='es_to_compare.hdf5',
... )
>>> # let the comparatier do the auto comparison:
>>> import tessif.analyze, tessif.parse
>>> import functools # nopep8
>>> from tessif.frused.hooks.tsf import reparameterize_components # nopep8
>>> comparatier = tessif.analyze.Comparatier(
... path=os.path.join(write_dir, 'tsf', 'es_to_compare.hdf5'),
... parser=tessif.parse.hdf5,
... models=('oemof', 'pypsa', 'fine', 'calliope'),
... hooks={
... 'calliope': functools.partial(
... reparameterize_components,
... components={
... 'Battery': {
... 'initial_soc': 9,
... },
... }
... )
... },
... scaling=True,
... )
Code accessing the results
Following section provides examples on how to use the
Comparatier interface to access the
auto generated comparison results
Analyzed Subjects
Following sections show how to access the analyzed energy systems and models
Models
>>> # show the models compared:
>>> for model in sorted(comparatier.models):
... print(model)
cllp
fine
omf
ppsa
Energy System Objects
>>> # access the model based energy system objects
>>> # (type(es) printed here for doctesting)
>>> #
>>> for model, es in comparatier.energy_systems.items():
... print(f'{model}: {type(es)}')
cllp: <class 'calliope.core.model.Model'>
fine: <class 'FINE.energySystemModel.EnergySystemModel'>
omf: <class 'oemof.solph.network.energy_system.EnergySystem'>
ppsa: <class 'pypsa.components.Network'>
Optimization Results
Following demonstrate how to access the numerical simulation results
Singular Model Results
>>> # access the model based post processing results
>>> for model, resultier in comparatier.optimization_results.items():
... print(model)
... print(79*'-')
... print(resultier.node_load['Powerline'])
... print(79*'-')
cllp
-------------------------------------------------------------------------------
Powerline Battery Generator Solar Panel Battery Demand
1990-07-13 00:00:00 -0.0 -0.0 -12.0 1.0 11.0
1990-07-13 01:00:00 -8.0 -0.0 -3.0 0.0 11.0
1990-07-13 02:00:00 -0.9 -3.1 -7.0 0.0 11.0
-------------------------------------------------------------------------------
fine
-------------------------------------------------------------------------------
Powerline Battery Generator Solar Panel Battery Demand
1990-07-13 00:00:00 -0.0 -0.0 -12.0 1.0 11.0
1990-07-13 01:00:00 -0.9 -7.1 -3.0 0.0 11.0
1990-07-13 02:00:00 -0.0 -4.0 -7.0 0.0 11.0
-------------------------------------------------------------------------------
omf
-------------------------------------------------------------------------------
Powerline Battery Generator Solar Panel Battery Demand
1990-07-13 00:00:00 -0.0 -0.0 -12.0 1.0 11.0
1990-07-13 01:00:00 -8.0 -0.0 -3.0 0.0 11.0
1990-07-13 02:00:00 -0.9 -3.1 -7.0 0.0 11.0
-------------------------------------------------------------------------------
ppsa
-------------------------------------------------------------------------------
Powerline Battery Generator Solar Panel Battery Demand
1990-07-13 00:00:00 -0.0 -0.0 -12.0 1.0 11.0
1990-07-13 01:00:00 -8.0 -0.0 -3.0 0.0 11.0
1990-07-13 02:00:00 -0.9 -3.1 -7.0 0.0 11.0
-------------------------------------------------------------------------------
Comparative Model Results
Following sections show how to utilize to built-in
ComparativeResultier to access results conveniently
among models.
Installed Capacity Results
>>> print(comparatier.comparative_results.capacities['Battery'])
cllp 10.0
fine 1.0
omf 10.0
ppsa 10.0
Name: Battery, dtype: float64
Original Capacity Results
>>> print(comparatier.comparative_results.original_capacities['Battery'])
cllp 10.0
fine 0.0
omf 10.0
ppsa 10.0
Name: Battery, dtype: float64
Capacity Expansion Costs
>>> print(comparatier.comparative_results.original_capacities['Solar Panel'])
cllp 20.0
fine 12.0
omf 20.0
ppsa 20.0
Name: Solar Panel, dtype: float64
Flow Cost Results
>>> print(comparatier.comparative_results.costs[('Generator', 'Powerline')])
cllp 10.000000
fine 10.000000
omf 10.000000
ppsa 33.809524
Name: (Generator, Powerline), dtype: float64
Characteristic Value Results
>>> print(comparatier.comparative_results.cvs['Generator'])
cllp 0.068889
fine 0.180000
omf 0.068889
ppsa 0.068889
Name: Generator, dtype: float64
Flow Emission Results
>>> print(comparatier.comparative_results.emissions[('Generator', 'Powerline')])
cllp 10.000000
fine 10.000000
omf 10.000000
ppsa 17.142857
Name: (Generator, Powerline), dtype: float64
Load Results
>>> print(comparatier.comparative_results.loads['Powerline'])
cllp fine omf ppsa
Powerline Battery Generator Solar Panel Battery Demand Battery Generator Solar Panel Battery Demand Battery Generator Solar Panel Battery Demand Battery Generator Solar Panel Battery Demand
1990-07-13 00:00:00 -0.0 -0.0 -12.0 1.0 11.0 -0.0 -0.0 -12.0 1.0 11.0 -0.0 -0.0 -12.0 1.0 11.0 -0.0 -0.0 -12.0 1.0 11.0
1990-07-13 01:00:00 -8.0 -0.0 -3.0 0.0 11.0 -0.9 -7.1 -3.0 0.0 11.0 -8.0 -0.0 -3.0 0.0 11.0 -8.0 -0.0 -3.0 0.0 11.0
1990-07-13 02:00:00 -0.9 -3.1 -7.0 0.0 11.0 -0.0 -4.0 -7.0 0.0 11.0 -0.9 -3.1 -7.0 0.0 11.0 -0.9 -3.1 -7.0 0.0 11.0
All Load Results
>>> print(comparatier.comparative_results.all_loads['omf'])
Battery Gas Station Generator Pipeline Powerline Solar Panel
Powerline Pipeline Powerline Generator Battery Demand Powerline
1990-07-13 00:00:00 0.0 0.000000 0.0 0.000000 1.0 11.0 12.0
1990-07-13 01:00:00 8.0 0.000000 0.0 0.000000 0.0 11.0 3.0
1990-07-13 02:00:00 0.9 7.380952 3.1 7.380952 0.0 11.0 7.0
>>> print(comparatier.comparative_results.all_loads['ppsa'])
Battery Generator Powerline Solar Panel
Powerline Powerline Battery Demand Powerline
1990-07-13 00:00:00 0.0 0.0 1.0 11.0 12.0
1990-07-13 01:00:00 8.0 0.0 0.0 11.0 3.0
1990-07-13 02:00:00 0.9 3.1 0.0 11.0 7.0
>>> print(comparatier.comparative_results.all_loads['fine'])
Battery Gas Station Generator Pipeline Powerline Solar Panel
Powerline Pipeline Powerline Generator Battery Demand Powerline
1990-07-13 00:00:00 0.0 0.000000 0.0 0.000000 1.0 11.0 12.0
1990-07-13 01:00:00 0.9 16.904762 7.1 16.904762 0.0 11.0 3.0
1990-07-13 02:00:00 0.0 9.523810 4.0 9.523810 0.0 11.0 7.0
>>> print(comparatier.comparative_results.all_loads['cllp'])
Battery Gas Station Generator Pipeline Powerline Solar Panel
Powerline Pipeline Powerline Generator Battery Demand Powerline
1990-07-13 00:00:00 0.0 0.000000 0.0 0.000000 1.0 11.0 12.0
1990-07-13 01:00:00 8.0 0.000000 0.0 0.000000 0.0 11.0 3.0
1990-07-13 02:00:00 0.9 7.380952 3.1 7.380952 0.0 11.0 7.0
For more info on why the ppsa dataframe has less columns than the omf dataframe,
please refer to
tessif.transform.es2es.ppsa.compute_unneeded_supply_chains() and to the
emission objective example comparison.
All Capacities
>>> print(comparatier.comparative_results.all_capacities)
cllp fine omf ppsa
Battery 10.0 1.0 10.0 10.0
Demand 11.0 11.0 11.0 11.0
Gas Station 100.0 100.0 100.0 NaN
Generator 15.0 21.0 15.0 15.0
Solar Panel 20.0 12.0 20.0 20.0
All Original Capacities
>>> print(comparatier.comparative_results.all_original_capacities)
cllp fine omf ppsa
Battery 10.0 0.0 10.0 10.0
Demand 11.0 11.0 11.0 11.0
Gas Station 100.0 100.0 100.0 NaN
Generator 15.0 21.0 15.0 15.0
Solar Panel 20.0 12.0 20.0 20.0
Pipeline NaN 0.0 NaN NaN
Powerline NaN 0.0 NaN NaN
All Net Energy Flows
>>> print(comparatier.comparative_results.all_net_energy_flows)
cllp fine omf ppsa
Battery Powerline 8.90 0.90 8.90 8.9
Gas Station Pipeline 7.38 26.43 7.38 NaN
Generator Powerline 3.10 11.10 3.10 3.1
Pipeline Generator 7.38 26.43 7.38 NaN
Powerline Battery 1.00 1.00 1.00 1.0
Demand 33.00 33.00 33.00 33.0
Solar Panel Powerline 22.00 22.00 22.00 22.0
All Costs Incurred
>>> print(comparatier.comparative_results.all_costs_incurred)
cllp fine omf ppsa
Battery Powerline 0.0 0.0 0.0 0.000000
Gas Station Pipeline 73.8 264.3 73.8 NaN
Generator Powerline 31.0 111.0 31.0 104.809524
Pipeline Generator 0.0 0.0 0.0 NaN
Powerline Battery 0.0 0.0 0.0 0.000000
Demand 0.0 0.0 0.0 0.000000
Solar Panel Powerline 0.0 0.0 0.0 0.000000
All Emissions Caused
>>> print(comparatier.comparative_results.all_emissions_caused)
cllp fine omf ppsa
Battery Powerline 0.00 0.00 0.00 0.000000
Gas Station Pipeline 22.14 79.29 22.14 NaN
Generator Powerline 31.00 111.00 31.00 53.142857
Pipeline Generator 0.00 0.00 0.00 NaN
Powerline Battery 0.00 0.00 0.00 0.000000
Demand 0.00 0.00 0.00 0.000000
Solar Panel Powerline 0.00 0.00 0.00 0.000000
All States of Charges
>>> print(comparatier.comparative_results.all_socs)
cllp fine omf ppsa
Battery Battery Battery Battery
1990-07-13 00:00:00 10.0 0.0 10.0 10.0
1990-07-13 01:00:00 1.0 1.0 1.0 1.0
1990-07-13 02:00:00 0.0 0.0 0.0 0.0
Net Energy Flow Results
>>> print(comparatier.comparative_results.net_energy_flows[('Solar Panel', 'Powerline')])
cllp 22.0
fine 22.0
omf 22.0
ppsa 22.0
Name: (Solar Panel, Powerline), dtype: float64
State of Charge Results
>>> print(comparatier.comparative_results.socs['Battery'])
Battery cllp fine omf ppsa
1990-07-13 00:00:00 10.0 0.0 10.0 10.0
1990-07-13 01:00:00 1.0 1.0 1.0 1.0
1990-07-13 02:00:00 0.0 0.0 0.0 0.0
Edge Weight Results
>>> print(comparatier.comparative_results.weights[('Generator', 'Powerline')])
cllp 1.0
fine 1.0
omf 1.0
ppsa 1.0
Name: (Generator, Powerline), dtype: float64
Computational Results
Following sections demonstrate how to access the auto generated computational results.
Memory Usage Results in Bytes
Not doctested, since results vary slightly between runs:
import pprint
# Access the model based memory usage results:
for model, memory_results in comparatier.memory_usage_results.items():
print(model)
print(79*'-')
pprint.pprint(memory_results)
print(79*'-')
cllp
-------------------------------------------------------------------------------
{'parsing': 83185,
'post_processing': 161250,
'reading': 220657,
'result': 1801156,
'simulation': 576657,
'transformation': 759407}
-------------------------------------------------------------------------------
fine
-------------------------------------------------------------------------------
{'parsing': 92885,
'post_processing': 172822,
'reading': 216152,
'result': 1441275,
'simulation': 641177,
'transformation': 318239}
-------------------------------------------------------------------------------
omf
-------------------------------------------------------------------------------
{'parsing': 90895,
'post_processing': 116713,
'reading': 223382,
'result': 691305,
'simulation': 235735,
'transformation': 24580}
-------------------------------------------------------------------------------
ppsa
-------------------------------------------------------------------------------
{'parsing': 95061,
'post_processing': 93522,
'reading': 218610,
'result': 1533652,
'simulation': 409450,
'transformation': 717009}
Time Usage Results in Seconds
Not doctested, since results vary slightly between runs:
import pprint
# Access the model based time usage results:
for model, timing_results in comparatier.timing_results.items():
print(model)
print(79*'-')
pprint.pprint(timing_results)
print(79*'-')
cllp
-------------------------------------------------------------------------------
{'parsing': 0.2704,
'post_processing': 0.1708,
'reading': 0.1224,
'result': 1.061,
'simulation': 0.4329,
'transformation': 0.0652}
-------------------------------------------------------------------------------
fine
-------------------------------------------------------------------------------
{'parsing': 0.2704,
'post_processing': 0.1708,
'reading': 0.1224,
'result': 1.061,
'simulation': 0.4329,
'transformation': 0.0652}
-------------------------------------------------------------------------------
omf
-------------------------------------------------------------------------------
{'parsing': 0.2651,
'post_processing': 0.1722,
'reading': 0.1158,
'result': 0.653,
'simulation': 0.0982,
'transformation': 0.0016}
-------------------------------------------------------------------------------
ppsa
-------------------------------------------------------------------------------
{'parsing': 0.2663,
'post_processing': 0.0829,
'reading': 0.1166,
'result': 1.121,
'simulation': 0.2428,
'transformation': 0.4119}
-------------------------------------------------------------------------------

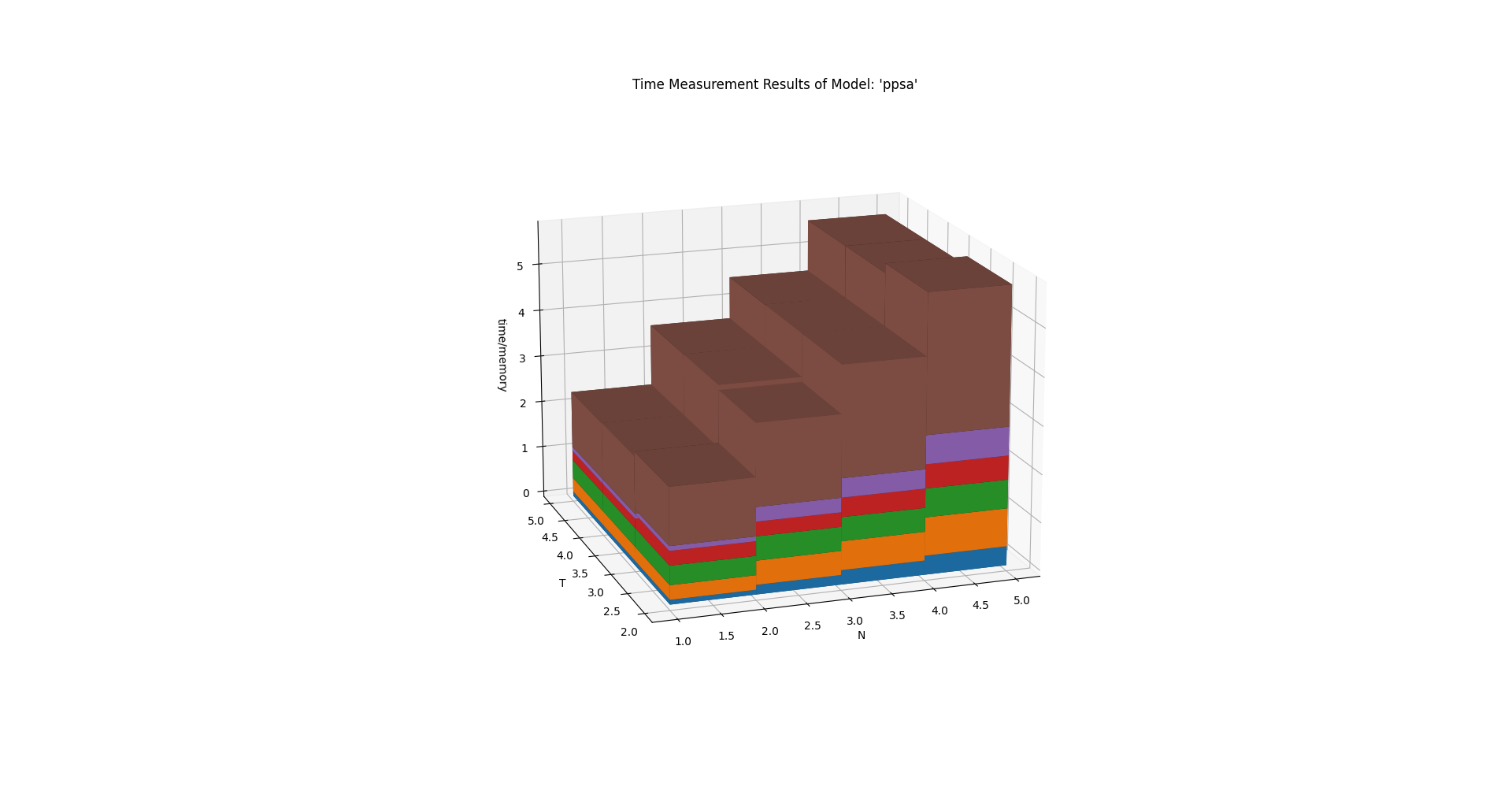

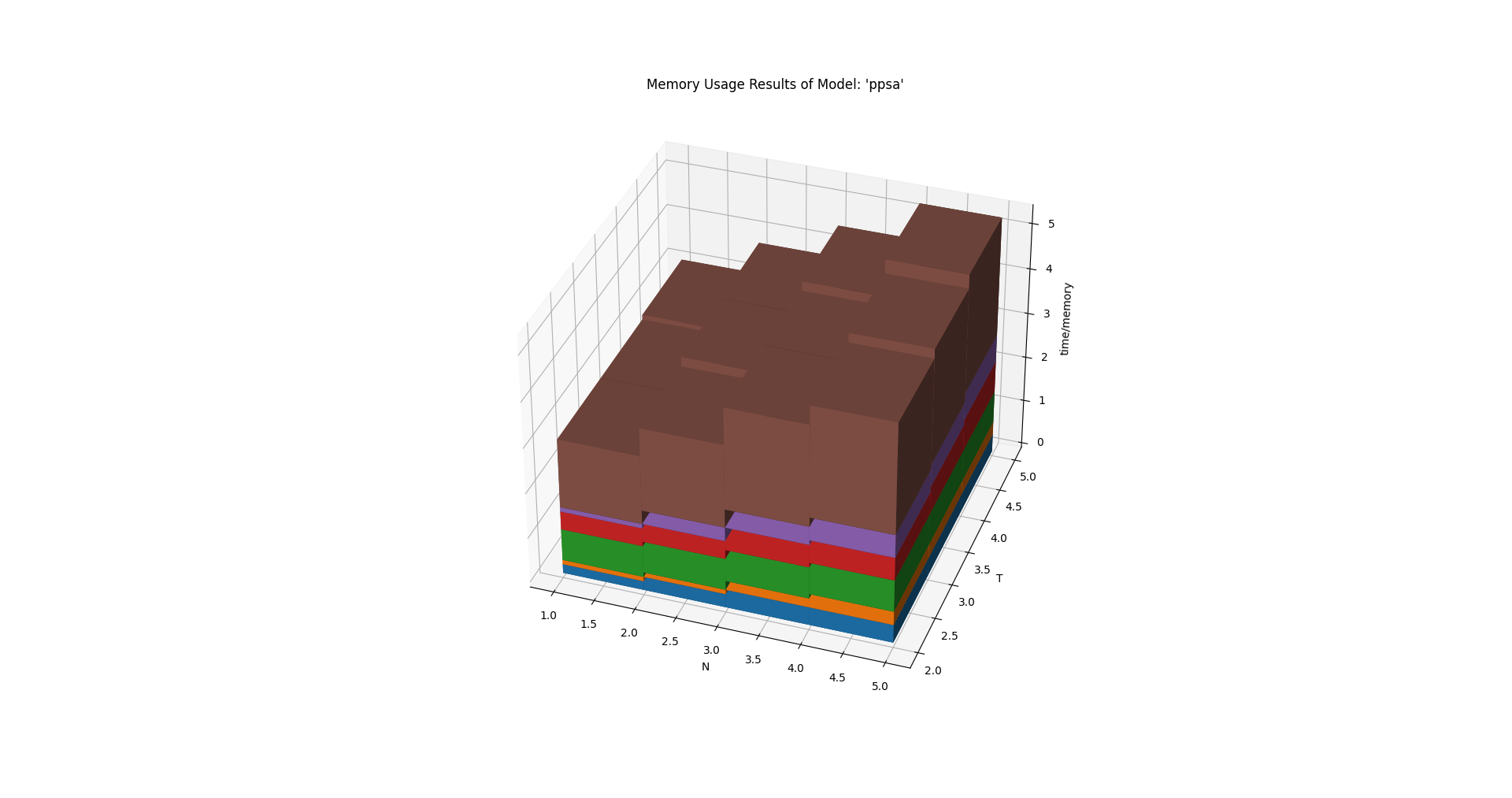

Scalability Results
Not doctested, since results vary slightly between runs:
import pprint
# Access the model based scalability results:
# time in seconds, memory in MB:
for model, scalability_results in comparatier.scalability_results.items():
print(model)
print(79*'-')
for result_type, results in scalability_results._asdict().items():
print(result_type)
pprint.pprint(results)
print(79*'-')
cllp
-------------------------------------------------------------------------------
memory
1 2
2 (227.4, 98.7, 798.7, 728.2, 205.0, 2058.0) (301.9, 156.8, 1167.6, 1891.1, 300.9, 3818.2)
time
1 2
2 (0.1, 0.2, 1.0, 0.5, 1.2, 3.1) (0.2, 0.3, 1.3, 0.6, 3.2, 5.7)
-------------------------------------------------------------------------------
fine
-------------------------------------------------------------------------------
memory
1 2
2 (223.6, 93.6, 260.9, 510.3, 171.1, 1259.4) (309.3, 157.2, 546.9, 610.2, 339.3, 1962.9)
time
1 2
2 (0.1, 0.2, 0.1, 0.4, 0.3, 1.1) (0.2, 0.3, 0.1, 0.5, 0.7, 1.8)
-------------------------------------------------------------------------------
omf
-------------------------------------------------------------------------------
memory
1 2
2 (227.3, 99.0, 30.7, 201.3, 131.5, 689.8) (320.0, 155.3, 92.3, 358.1, 272.6, 1198.3)
time
1 2
2 (0.1, 0.2, 0.0, 0.1, 0.2, 0.7) (0.2, 0.3, 0.0, 0.2, 0.5, 1.2)
-------------------------------------------------------------------------------
ppsa
-------------------------------------------------------------------------------
memory
1 2
2 (229.2, 96.3, 457.3, 396.3, 114.0, 1293.3) (303.7, 156.4, 479.0, 436.5, 241.5, 1617.2)
time
1 2
2 (0.1, 0.2, 0.5, 0.3, 0.1, 1.2) (0.2, 0.3, 0.5, 0.3, 0.3, 1.7)
-------------------------------------------------------------------------------
Graphical Results
Following 2 sections show the available graphical representation of the scalability results.
2-Dimensional
3-Dimensional
The below charts were created using
tessif.analyze.Comparatier.N = 4 and
tessif.analyze.Comparatier.T = 4. Which is not shown in the
code above:
>>> scalability_3d_charts = comparatier.scalability_charts_3D
>>> #
>>> # show the oemof memory results as an example:
>>> # commented out for doctesting:
>>> # scalability_3d_charts['ppsa'].memory.show()
>>> # show the pypsa timing results as an example:
>>> # commented out for doctesting:
>>> # scalability_3d_charts['ppsa'].time.show()
Integrated Global Results (IGR)
Following section demonstrate how to access the
integrated global results of the models compared.
>>> # show the integrated global results of the fpwe:
>>> comparatier.integrated_global_results.drop(
... ['time (s)', 'memory (MB)'], axis='index')
cllp fine omf ppsa
emissions (sim) 53.0 190.0 53.0 53.0
costs (sim) 105.0 375.0 105.0 105.0
opex (ppcd) 105.0 375.0 105.0 105.0
capex (ppcd) 0.0 0.0 0.0 0.0
Memory and timing results are dropped because they vary slightly between runs. The original results look something like:
comparatier.integrated_global_results
cllp fine omf ppsa
emissions (sim) 53.0 190.0 53.0 53.0
costs (sim) 105.0 375.0 105.0 105.0
opex (ppcd) 105.0 375.0 105.0 105.0
capex (ppcd) 0.0 0.0 0.0 0.0
time (s) 1.1 1.0 0.6 1.1
memory (MB) 1.5 1.3 0.6 1.4

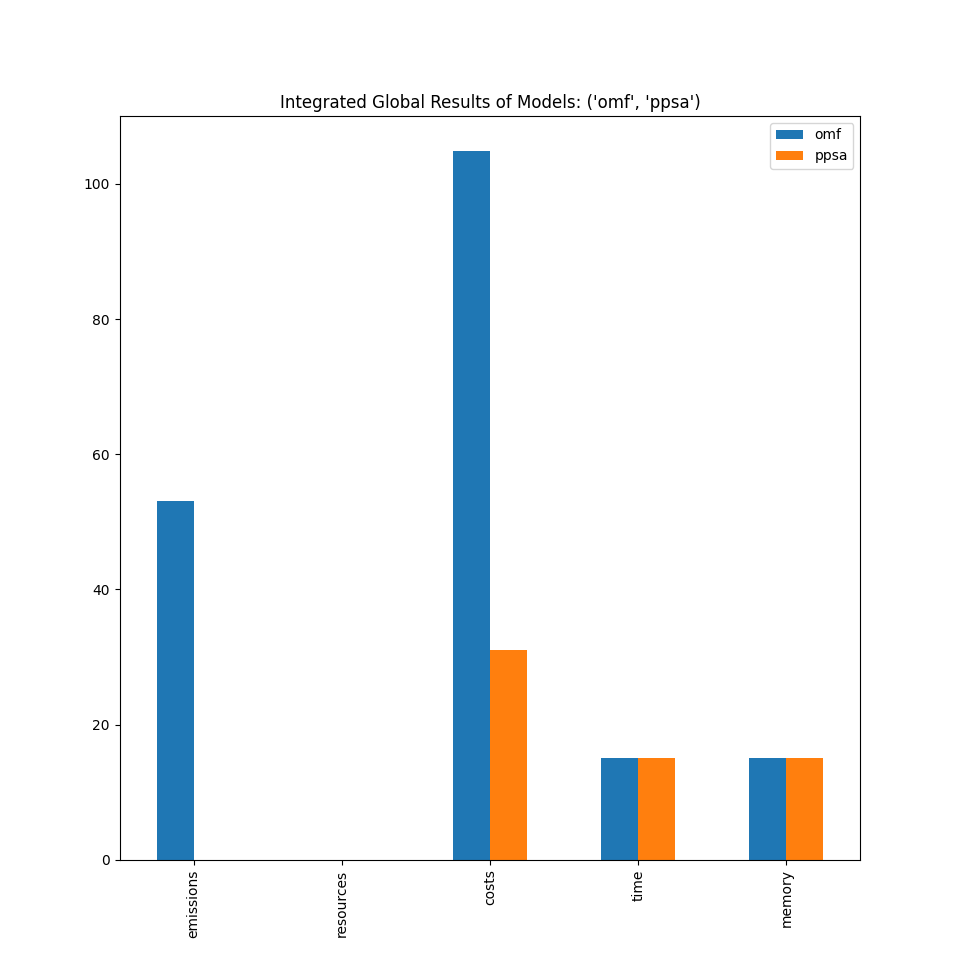

Graphical Representation
>>> # show the IGR of the fpwe as bar chart
>>> # commented out for better doctesting
>>> # comparatier.draw_global_results_chart().show()
Integrated Component Results (ICR)
Following section demonstrate how to access the integrated component results of the models compared.
>>> # access the model based integrated component results (ICR)
>>> # (type(graph) printed here for doctesting)
>>> #
>>> for model, graph in comparatier.ICR_graphs.items():
... print(f'{model}: {type(graph)}')
cllp: <class 'tessif.transform.nxgrph.Graph'>
fine: <class 'tessif.transform.nxgrph.Graph'>
omf: <class 'tessif.transform.nxgrph.Graph'>
ppsa: <class 'tessif.transform.nxgrph.Graph'>

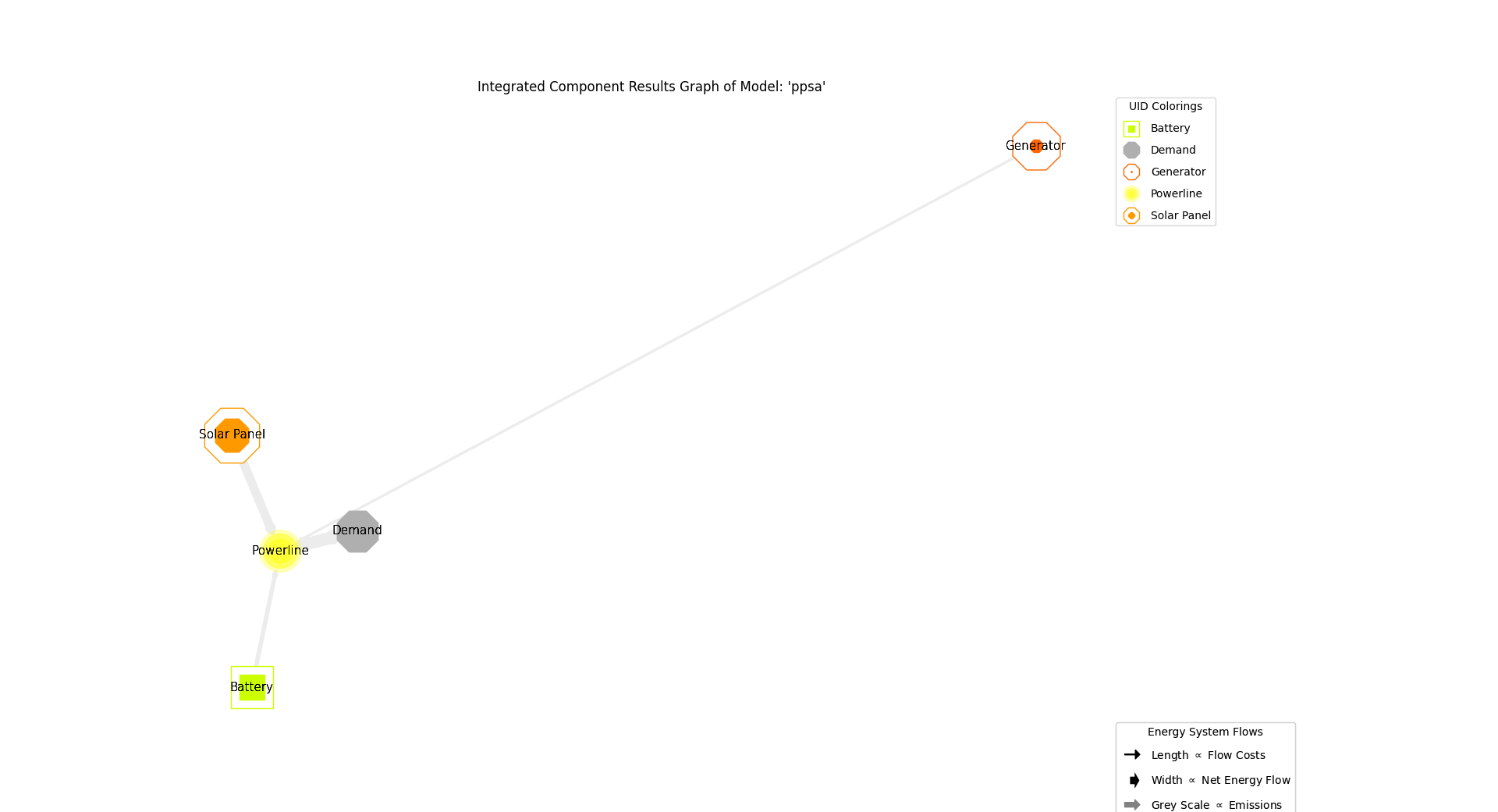

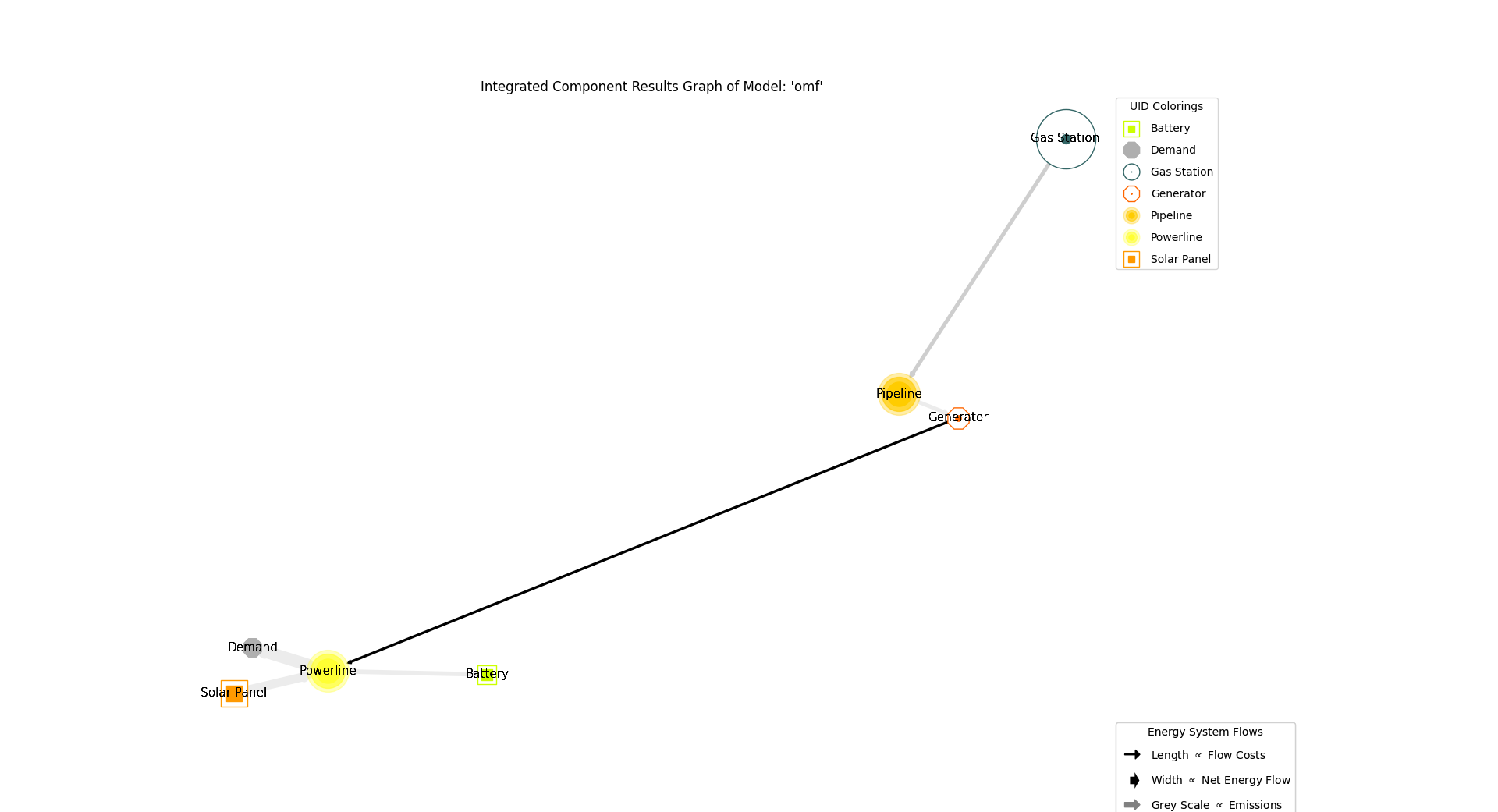

Graphical Representation
>>> # show the fpwe ICR of the compared models:
>>> # commented out for better doctesting
>>> # comparatier.ICR_graph_charts()['omf'].show()
>>> # comparatier.ICR_graph_charts()['ppsa'].show()
Difference Analyzation Results (DAR)
Following sections give an example on how to access the
difference analyzation results of certain energy
flows when comparing the model results.
>>> # show the difference analyzation results of the fpwe:
>>> load_diffs = comparatier.calculate_load_differences(
... component='Generator',
... flow='Powerline',
... threshold=0.1,
... )
>>> print(load_diffs)
average cllp fine omf ppsa
1990-07-13 00:00:00 0.00 0.00 0.0 0.00 0.00
1990-07-13 01:00:00 1.78 0.00 7.1 0.00 0.00
1990-07-13 02:00:00 3.32 3.32 4.0 3.32 3.32

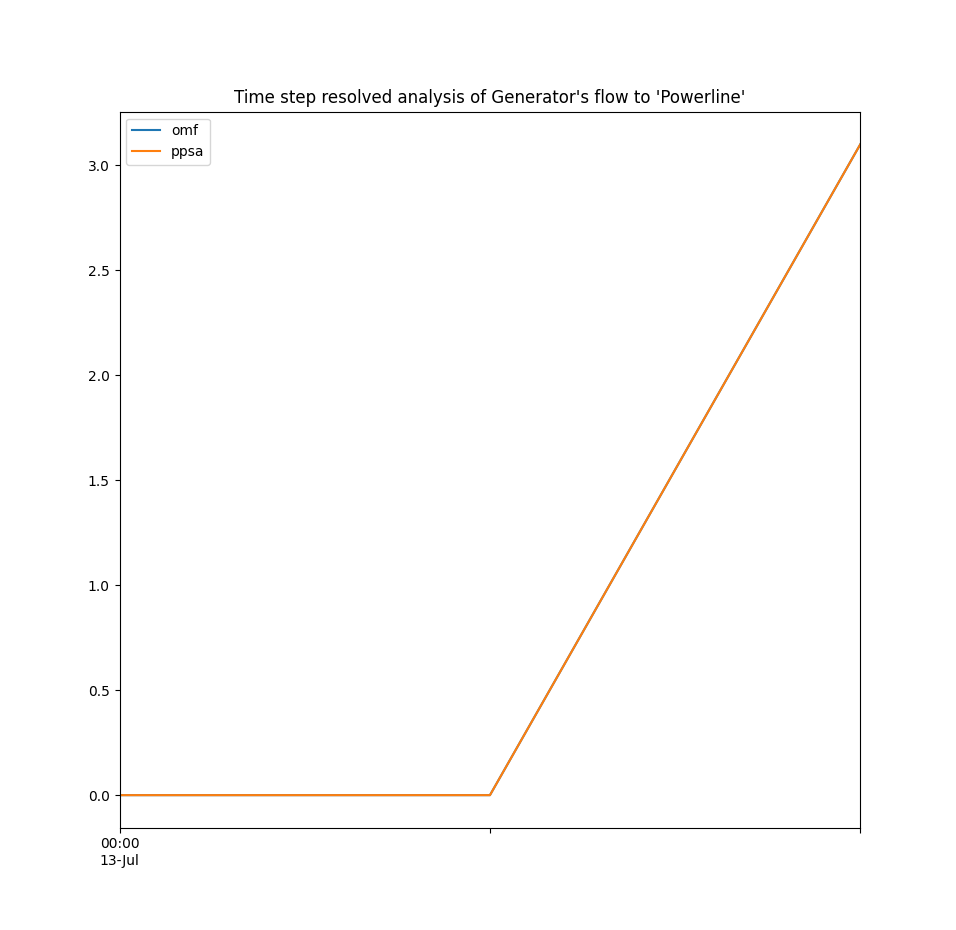

Graphical Representation
>>> # show the fpwe DAR of the flow from component 'Generator' to 'Powerline':
>>> # commented out for better doctesting
>>> chart = comparatier.draw_load_differences_chart(
... component='Generator',
... flow='Powerline',
... threshold=0.1,
... )
>>> # chart.show()
Statistical Analyzation Results
Following sections give an example on how to access the
statistical analyzation results of certain
energy flows when comparing the model results.
>>> # show the difference analyzation results of the fpwe:
>>> statistical_diffs = comparatier.calculate_statistical_load_differences(
... component='Generator',
... flow='Powerline',
... )
>>> print(statistical_diffs.round(2))
cllp fine omf ppsa
NRMSE 0.61 1.82 0.61 0.61
NMAE 0.39 1.18 0.39 0.39
NMBE -0.39 1.18 -0.39 -0.39

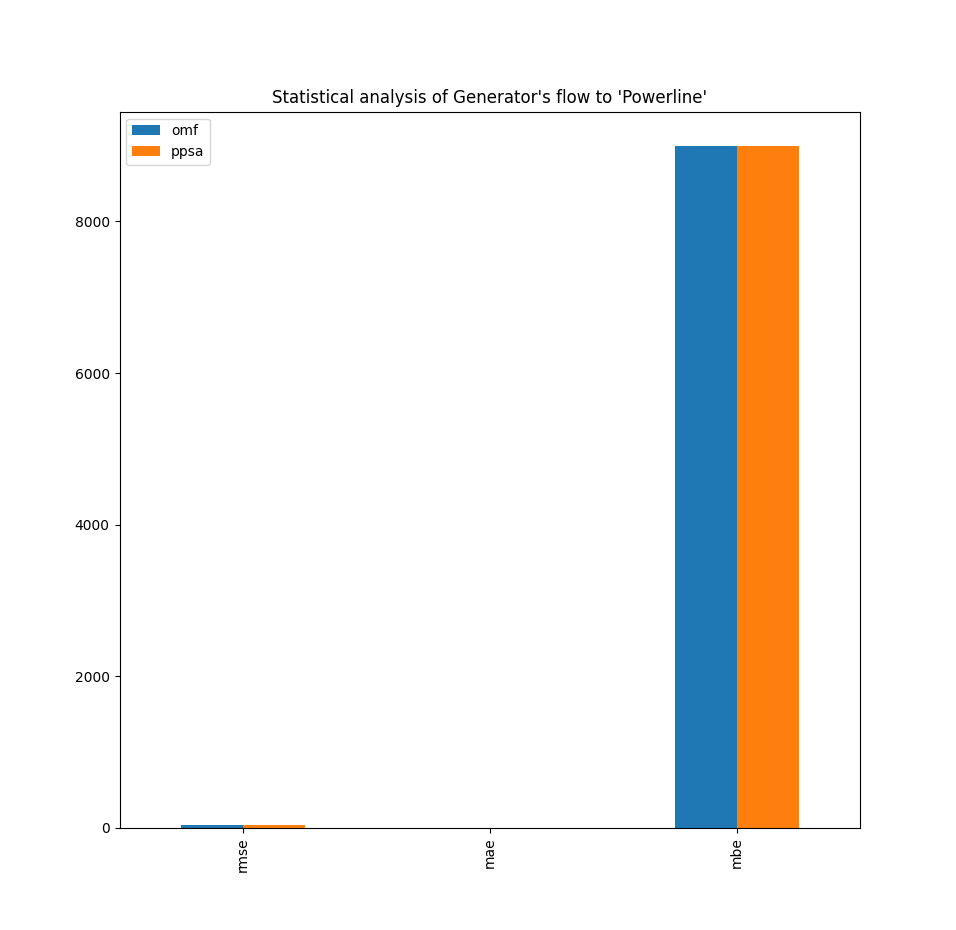

Graphical Representation
>>> # show the fpwe DAR of the flow from component 'Generator' to 'Powerline':
>>> # commented out for better doctesting
>>> chart = comparatier.draw_statistical_load_differences_chart(
... component='Generator',
... flow='Powerline',
... )
>>> # chart.show()
