energy_system

Main Class

AbstractEnergySystem

Aggregate tessif's abstract components into an energy system.

Alternative Ways of Creation

AbstractEnergySystem.from_external	Create an energy system using a nested mapping from an external data source.
AbstractEnergySystem.from_components	Create an energy system from a collection of component instances.

Key Functionalities

AbstractEnergySystem.connect	Connect another AbstractEnergySystem object to this one.
AbstractEnergySystem.dump	Store (dump) the energy system into directory.filename.
AbstractEnergySystem.restore	Restore a dumped energy system directory.filename.
AbstractEnergySystem.duplicate	Duplicate the energy system and return it.
AbstractEnergySystem.to_hdf5	Store (dump) the energy system info as a hdf5 file.
AbstractEnergySystem.to_cfg	Store (dump) the energy system info as a hdf5 file.
AbstractEnergySystem.to_nxgrph	Transform the AbstractEnergySystem object into a networkx.DiGraph object.
AbstractEnergySystem.from_pickle	Create an energy system instance from a pickle dumped binary.
AbstractEnergySystem.from_external	Create an energy system using a nested mapping from an external data source.
AbstractEnergySystem.from_components	Create an energy system from a collection of component instances.

energy_system is a tessif module transforming the abstract data representation of an energy system stored as mapping into an actual object. This object in turn can than very conveniently be transformed into other energy system models or beeing simulated using tessif’s simulation engine.

Note

Mapping like representations are usually returned by utilities part of the parse module.

Example

Using the hardcoded example (thoroughly explained here):

>>> import tessif.examples.data.tsf.py_hard as tsf_examples
>>> es = tsf_examples.create_fpwe()
>>> for node in es.nodes:
...    print(node.uid.name)
Pipeline
Powerline
Gas Station
Solar Panel
Demand
Generator
Battery

class tessif.model.energy_system.AbstractEnergySystem(uid, *args, **kwargs)

Bases: object

Aggregate tessif’s abstract components into an energy system.

Parameters:

• uid (Hashable) – Hashable unique identifier. Usually a string aka a name.

• busses (Iterable) – Iterable of Bus objects to be added to the energy system

• sinks (Iterable) – Iterable of Sink objects to be added to the energy system

• sources (Iterable) – Iterable of Source objects to be added to the energy system

• transformers (Iterable) – Iterable of Transformer objects to be added to the energy system

• storages (Iterable) – Iterable of Storage objects to be added to the energy system

• timeframe (pandas.DatetimeIndex) –

  Datetime index representing the evaluated timeframe. Explicitly stating:

  • initial datatime (0th element of the pandas.DatetimeIndex)

  • number of timesteps (length of pandas.DatetimeIndex)

  • temporal resolution (pandas.DatetimeIndex.freq)

  For example:

  idx = pd.DatetimeIndex(
      data=pd.date_range(
          '2016-01-01 00:00:00', periods=11, freq='H'))


• global_constraints (dict, default={'emissions': float('+inf')}) –

  Dictionary of numeric values mapped to global constraint naming strings.

  Recognized constraint keys are:

  • emissions

  • …

  For a more detailed explanation see the user guide’s section: Secondary Objectives

property uid

Hashable unique identifier. Usually a string aka a name.

property busses

Generator of Bus objects part of the energy system.

property chps

Generator of CHP objects part of the energy system.

property connectors

Generator of Connectors objects part of the energy system.

property sources

Generator of Source objects part of the energy system.

property sinks

Generator of Sink objects part of the energy system.

property transformers

Generator of Transformer objects part of the energy system.

property storages

Generator of Storage objects part of the energy system.

property nodes

Generator yielding this energy system’s components.

property edges

Generator of Edge NamedTuples representing graph like edges.

property global_constraints

Dictionary of numeric values mapped to global constraint naming strings currently respected by the energy system.

connect(energy_system, connecting_busses, connection_uid)

Connect another AbstractEnergySystem object to this one.

Parameters:

• energy_system (tessif.model.energy_system.AbstractEnergySystem) –

  Energy system object to be connected to this energy system via the respective connecting_busses.

  The energy_system's Bus specified in connecting_busses[1] will be connected to this energy system’s Bus specified in connecting_busses[0]. So it’s uid must be found in this energy system.

• connecting_busses (tuple) –

  Tuple of Uids string representation specifying the busses with which the energy systems will be connected.

  The energy_system's Bus specified in connecting_busses[1] will be connected to this energy system’s Bus specified in connecting_busses[0].

• connection_uid (tessif.frused.namedtuples.Uid) – Uid of the Connector object created for connecting the energy system.

Returns:

The energy system created by connecting the energy_system to this energy system.

Return type:

tessif.model.energy_system.AbstractEnergySystem

Example

Connect instances of hard coded tessif energy systems:

0. Setting spellings.get_from’s logging level to debug for decluttering doctest output:

>>> from tessif.frused import configurations
>>> configurations.spellings_logging_level = 'debug'

1. Create the energy systems:

>>> import tessif.examples.data.tsf.py_hard as coded_examples
>>> mwe = coded_examples.create_mwe()
>>> mssesu = coded_examples._create_minimal_es_unit(0, seed=42)

2. Connect the energy systems:

>>> from tessif.frused.namedtuples import Uid
>>> ces = mwe.connect(
...     energy_system=mssesu,
...     connecting_busses=('Powerline', 'Central Bus 0'),
...     connection_uid=Uid(name='connector'))

3. Transform the connected energy system to e.g omeof to see if the connection holds:

>>> from tessif.transform.es2es.omf import transform
>>> oemof_es = transform(ces)
>>> for node in oemof_es.nodes:
...     if str(node.label) == 'connector':
...         print(node)
connector

4. Perform a simulation to check if es is optimizable:

>>> import tessif.simulate as simulate
>>> optimized_oemof_es = simulate.omf_from_es(oemof_es)

5. Show some results:

>>> import tessif.transform.es2mapping.omf as oemof_results
>>> resultier = oemof_results.LoadResultier(optimized_oemof_es)
>>> print(resultier.node_load['Powerline'])
Powerline            Battery  Generator  connector  Battery  Demand  connector
1990-07-13 00:00:00    -10.0      -73.0       -0.0      0.0    10.0       73.0
1990-07-13 01:00:00     -0.0      -84.0       -0.0      0.0    10.0       74.0
1990-07-13 02:00:00     -0.0      -84.0       -0.0      0.0    10.0       74.0
1990-07-13 03:00:00     -0.0      -84.0       -0.0      0.0    10.0       74.0

>>> print(resultier.node_load['Central Bus 0'])
Central Bus 0        Excess Source 0  Power Generator 0  Renewable Source 0  Storage 0  connector  Excess Sink 0  Sink 0  Storage 0  connector
1990-07-13 00:00:00             -0.0               -0.0                -8.0       -1.0      -73.0            0.0    82.0        0.0        0.0
1990-07-13 01:00:00             -0.0               -0.0                -8.0       -0.0      -74.0            0.0    82.0        0.0        0.0
1990-07-13 02:00:00             -0.0               -0.0                -8.0       -0.0      -74.0            0.0    82.0        0.0        0.0
1990-07-13 03:00:00             -0.0               -0.0                -8.0       -0.0      -74.0            0.0    82.0        0.0        0.0

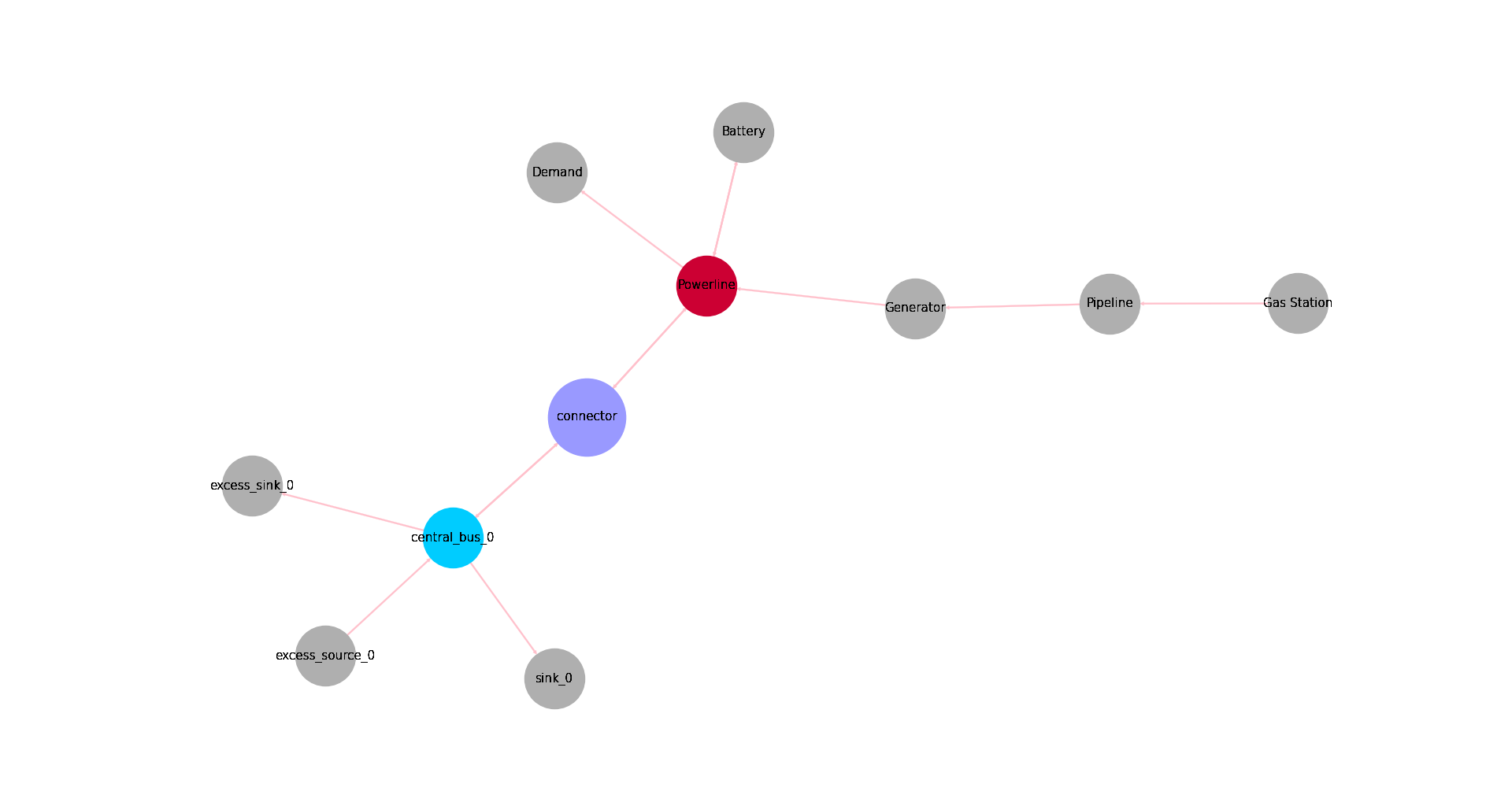

6. Plot the energy system for better understanding the defaults:

>>> import matplotlib.pyplot as plt
>>> import tessif.visualize.nxgrph as nxv
>>> grph = ces.to_nxgrph()
>>> drawing_data = nxv.draw_graph(
...     grph,
...     node_color={'connector': '#9999ff',
...                 'Powerline': '#cc0033',
...                 'central_bus_0': '#00ccff'},
...     node_size={'connector': 5000},
...     edge_color='pink',
...     layout='neato')
>>> # plt.show()  # commented out for better doctesting

dump(directory=None, filename=None)

Store (dump) the energy system into directory.filename.

Parameters:

• directory (str, default=None) –

  Path the created energy system is dumped to. Passed to pickle.dump().

  Will be joined with filename. To create an absolute path.

  If set to None (default) tessif.frused.paths.write_dir/tsf will be the chosen directory.

• filename (str, default=None) –

  dump() the energy system using this name.

  If set to None (default) filename will be energy_system.tsf.

Example

Using the hardcoded fully parameterized example

>>> import tessif.examples.data.tsf.py_hard as tsf_examples
>>> es = tsf_examples.create_fpwe()
>>> msg = es.dump()

Default storage location (relative to tessif’s root directory):

>>> print("Stored Tessif Energy System to", os.path.join(
...    'tessif', *msg.split('tessif')[-1].split(os.path.sep)))
Stored Tessif Energy System to tessif/write/tsf/energy_system.tsf

duplicate(prefix='', separator='_', suffix='copy')

Duplicate the energy system and return it. Potentially modify the node names.

Parameters:

• prefix (str, default='') – String added to the beginning of every node’s Uid.name, separated by seperator.

• separator (str, default='_') – String used for adding the prefix and the suffix to every node’s Uid.name.

• suffix (str, default='') – String added to the beginning of every node’s Uid.name, separated by seperator.

to_hdf5(directory=None, filename=None)

Store (dump) the energy system info as a hdf5 file.

Parameters:

• directory (str, default=None) –

  String representing of a path the created energy system is dumped to. Passed to recursively_save_dict_contents().

  Will be joined with filename to create an absolute path.

  If set to None (default) tessif.frused.paths.write_dir/tsf will be the chosen directory.

• filename (str, default=None) –

  Save the energy system to a hdf5 file with this name.

  If set to None (default) filename will be energy_system.hdf5.

Example

Using the hardcoded fully parameterized example

>>> import tessif.examples.data.tsf.py_hard as tsf_examples
>>> es = tsf_examples.create_fpwe()
>>> msg = es.to_hdf5()

Default storage location (relative to tessif’s root directory):

>>> print("Stored Tessif Energy System to", os.path.join(
...    'tessif', *msg.split('tessif')[-1].split(os.path.sep)))
Stored Tessif Energy System to tessif/write/tsf/energy_system.hdf5

to_cfg(directory=None)

Store (dump) the energy system info as a hdf5 file.

Parameters:

directory (str, Path default=None) –

Path/String representation of a path the created cfg files are stored in.

If set to None (default) tessif.frused.paths.write_dir/tsf/cfg will be the chosen directory.

Directory created if not present.

Example

Using the hardcoded fully parameterized example

>>> import tessif.examples.data.tsf.py_hard as tsf_examples
>>> es = tsf_examples.create_fpwe()
>>> msg = es.to_cfg()

Write a little test functionality for checking if to and from conifg file parsing are succesfull:

>>> from tessif.model.energy_system import AbstractEnergySystem as AES
>>> from tessif import parse
>>> import tempfile

Declutter logging output:

>>> import tessif.frused.configurations as configurations
>>> configurations.spellings_logging_level = "debug"

Define the mentioned helper function:

>>> def test_to_cfg(es, folder):
...     es.to_cfg(folder)
...     parsed_es = AES.from_external(
...         path=folder,
...         parser=parse.flat_config_folder
...     )
...
...     for es_attr in es._es_attributes:
...         if es_attr == "timeframe":
...             assert getattr(es, es_attr).equals(
...                 getattr(parsed_es, es_attr))
...         elif es_attr == "global_constraints":
...             if not getattr(es, es_attr) == getattr(
...                     parsed_es, es_attr):
...                 print("original:", getattr(es, es_attr))
...                 print("parsed:", getattr(parsed_es, es_attr))
...         else:
...             for es_node, pes_node in zip(
...                     getattr(es, es_attr), getattr(es, es_attr)):
...                 for es_attr, pes_attr in zip(
...                     es_node.attributes.values(),
...                     pes_node.attributes.values()
...                 ):
...                     if not es_attr == pes_attr:
...                         print("original:", es_attr)
...                         print("parsed:", pes_attr)

Utilize above function to check hardcoded examples parsing:

>>> import tessif.examples.data.tsf.py_hard as example_module
>>> import_aliases = [
...     "create_mwe",
...     "create_fpwe",
...     "emission_objective",
...     "create_connected_es",
...     "create_chp",
...     "create_variable_chp",
...     "create_storage_example",
...     "create_expansion_plan_example",
...     "create_simple_transformer_grid_es",
... ]
>>> for alias in import_aliases:
...     energy_system = getattr(example_module, alias)()
...     print(energy_system.uid, "..")
...     with tempfile.TemporaryDirectory() as tempdir:
...         test_to_cfg(energy_system, folder=tempdir)
...     print(".. parsed succesfully!")
Minimum_Working_Example ..
.. parsed succesfully!
Fully_Parameterized_Working_Example ..
.. parsed succesfully!
Emission_Objective_Example ..
.. parsed succesfully!
Connected-Energy-Systems-Example ..
.. parsed succesfully!
CHP_Example ..
.. parsed succesfully!
CHP_Example ..
.. parsed succesfully!
Storage-Energysystem-Example ..
.. parsed succesfully!
Expansion Plan Example ..
.. parsed succesfully!
Two Transformer Grid Example ..
.. parsed succesfully!

restore(directory=None, filename=None)

Restore a dumped energy system directory.filename.

Parameters:

• directory (str, default=None) –

  Path the created energy system was dumped to. Passed to pickle.restore().

  Will be joined with filename. To create an absolute path.

  If set to None (default) tessif.frused.paths.write_dir/tsf will be the chosen directory.

• filename (str, default=None) –

  load() the energy system using this name.

  If set to None (default) filename will be energy_system.tsf.

Example

Using the hardcoded fully parameterized example …

>>> import tessif.examples.data.tsf.py_hard as tsf_examples
>>> es = tsf_examples.create_fpwe()

… to dump it into Tessif’s default storage location (relative to tessif’s root directory) …

>>> msg = es.dump()

… and restore it:

>>> msg = es.restore()

>>> print("Restored Tessif Energy System from", os.path.join(
...    'tessif', *msg.split('tessif')[-1].split(os.path.sep)))
Restored Tessif Energy System from tessif/write/tsf/energy_system.tsf

Use Case:

>>> from tessif.model.energy_system import AbstractEnergySystem
>>> restored_es = AbstractEnergySystem('This Instance Is Restored')
>>> msg = restored_es.restore()
>>> for node in restored_es.nodes:
...     print(node.uid.name)
Pipeline
Powerline
Gas Station
Solar Panel
Demand
Generator
Battery

classmethod from_pickle(directory=None, filename=None)

Create an energy system instance from a pickle dumped binary.

Parameters:

• directory (str, default=None) –

  String representing of a path the created energy system was dumped to. Passed to pickle.restore().

  Will be joined with filename. To create an absolute path.

  If set to None (default) tessif.frused.paths.write_dir/tsf will be the chosen directory.

• filename (str, default=None) –

  load() the energy system using this name.

  If set to None (default) filename will be energy_system.tsf

Example

Restoring a tessif energy system model from tessif’s default location:

>>> from tessif.model.energy_system import AbstractEnergySystem
>>> es = AbstractEnergySystem.from_pickle()
>>> for node in es.nodes:
...     print(node.uid.name)
Pipeline
Powerline
Gas Station
Solar Panel
Demand
Generator
Battery

Note

See dump's Example on how the pickled energy system got there in the first place.

classmethod from_external(path, parser, **kwargs)

Create an energy system using a nested mapping from an external data source.

Note

For more on nested mappings refer to tessif’s concept section. A list of supported datatypes can be found here.

Parameters:

• path (str, Path) –

  Path or string representation of a path specifying the location of the file from which the energy system is to be created.

  For a list of supported datatypes see Supported Data Formats.

• parser (Callable) –

  Functional used to read in and parse the energy system data. Usually one of the module functions found in tessif.parse

  Use functools.partial() for supplying parameters. See also the Example section.

Example

Creating an energy system out of a folder of flat config files:

>>> from tessif.parse import flat_config_folder
>>> from tessif.model.energy_system import AbstractEnergySystem
>>> from tessif.frused.paths import example_dir
>>> import os

>>> es = AbstractEnergySystem.from_external(
...     path=os.path.join(example_dir, 'data', 'tsf',
...                       'cfg', 'flat', 'basic'),
...     parser=flat_config_folder)
>>> print(es.uid)
es_from_external_source

>>> for node in es.nodes:
...     print(node.uid.name)
Pipeline
Power Line
Air Chanel
Gas Station
Solar Panel
Air
Demand
Generator
Battery

classmethod from_components(uid, components, timeframe, global_constraints={'emissions': inf}, **kwargs)

Create an energy system from a collection of component instances.

Particularly usefull when creating energy systems out of existing ones.

Parameters:

• uid (Hashable) – Hashable unique identifier. Usually a string aka a name.

• components (~collections.abc.Iterable) – Iterable of tessif.model.components.AbstractEsComponent objects the energy system will be created of.

• timeframe (pandas.DatetimeIndex, optional) –

  Datetime index representing the evaluated timeframe. Explicitly stating:

  • initial datatime (0th element of the pandas.DatetimeIndex)

  • number of timesteps (length of pandas.DatetimeIndex)

  • temporal resolution (pandas.DatetimeIndex.freq)

  For example:

  idx = pd.DatetimeIndex(
      data=pd.date_range(
          '2016-01-01 00:00:00', periods=11, freq='H'))


• global_constraints (dict, default={'emissions': float('+inf')}) –

  Dictionairy of numeric values mapped to global constraint naming strings.

  Recognized constraint keys are:

  • emissions

  • …

  For a more detailed explanation see the user guide’s section: Secondary Objectives

Returns:

The newly constructed energy system containing each component found in components.

Return type:

AbstractEnergySystem

Example

1. Use a hard coded example:

>>> import tessif.examples.data.tsf.py_hard as coded_examples
>>> mwe = coded_examples.create_mwe()
>>> print(mwe.uid)
Minimum_Working_Example

>>> for node in mwe.nodes:
...     print(node.uid)
Pipeline
Powerline
Gas Station
Demand
Generator
Battery

2. Reconstruct the es by using the mwe:

>>> from tessif.model.energy_system import AbstractEnergySystem
>>> es = AbstractEnergySystem.from_components(
...          uid='from_components_examples',
...          components=mwe.nodes,
...          timeframe=mwe.timeframe,
...          global_constraints=mwe.global_constraints)

>>> print(es.uid)
from_components_examples

>>> for node in es.nodes:
...     print(node.uid)
Pipeline
Powerline
Gas Station
Demand
Generator
Battery

to_nxgrph()

Transform the AbstractEnergySystem object into a networkx.DiGraph object.

Returns:

directional_graph – Networkx Directional Graph representing the abstract energy system.

Return type:

networkx.DiGraph
