verify.core

`Verificier`	Conveniently generate verification result data and plots for assessing the proper component bahavior of an energy supply system simulation model.
`Verificier.components`	Tuple of strings representing the verified `components`.
`Verificier.constraints`	Mapping of energy system file names to constraint group strings. Used for verification. At default parameterization this looks like::.
`Verificier.constraint_types`	Tuple of strings representing the verified constraint types.
`Verificier.constraint_groups`	Tuple of the constraints and constraint files subject to verification.
`Verificier.numerical_results`	Dictionary holding the Verificier's numerical results. At default parameterization, this dictionary would look like::.
`Verificier.graphical_results`	Dictionary holding the Verificier's graphical results. At default parameterization, this dictionary would look like::.
`Verificier.results`	Dictionary holding all of the Verificier's results. At default parameterization, this dictionary would look like::.
`Verificier.plot_energy_system_graph`	Plot the networkx representation of an energy system subject to verification.

The verify core module holds the Verificer class.

Its main access however is desinged to be via the verify __init__ moduel, i.e. tessif.verify.Verificer.

class tessif.verify.core.Verificier(model, parser, path=None, timeframe='primary', components=('connector', 'sink', 'source', 'storage', 'transformer'), constraints={'expansion': ('expansion_costs', 'expansion_limits'), 'linear': ('accumulated_amounts', 'flow_rates', 'flow_costs', 'flow_emissions', 'flow_gradients', 'gradient_costs', 'timeseries'), 'milp': ('initial_status', 'status_inertia', 'number_of_status_changes', 'costs_for_being_active')})[source]

Bases: object

Conveniently generate verification result data and plots for assessing the proper component bahavior of an energy supply system simulation model.

Note

This class assumes, you prepare a singular tessif energy system for each group of constraints. It further more assumes that all relevant results for verification can be extracted from a single bus object carrying the name centralbus.

Parameters:

path¶ (str, Path, None, default=None) –

String representing the top level folder of where the tessif energy systems are stored. Verificier expects a singular energy system to be present for each combination of components, constraints and the respected group of constraints (e.g. flow rates). Hence the expected folder structure would look like:

/top/level/folder
|-- source
|   |-- expansion
|   |   |-- costs.[hdf5/xlsx/cfg/...]
|   |   |-- emissions.[hdf5/xlsx/cfg/...]
|   |-- linear
|   |   |-- flow_rates.[hdf5/xlsx/cfg/...]
|   |   |-- gradients.[hdf5/xlsx/cfg/...]
|   |-- milp
|   |   |-- status.[hdf5/xlsx/cfg/...]
|   |   |-- status_changing.[hdf5/xlsx/cfg/...]
|-- sink
|   |-- expansion
|   |   |-- costs.[hdf5/xlsx/cfg/...]
|   |   |-- emissions.[hdf5/xlsx/cfg/...]
...

An example set of verification scenarios is found in the example directory.

If None (default) application/verification inside example_dir is used.

model¶ (str) – String specifying one of the registered_models representing the energy system simulation model investigated.
parser¶ (Callable) – Functional used to read in and parse the energy system data. Usually one of the module functions found in tessif.parse
timeframe¶ (str, default='primary') – String specifying which of the (potentially multiple) timeframes passed is to be used. One of 'primary', 'secondary', etc… by convention.
components¶ (Iterable, optional) –
Iterable of strings representing the components to be verified. They also represent the first level of folders in which the energy systems are to be found for performing the verification procedure.

Default is:
```
components=('connector', 'sink',
            'source', 'storage', 'transformer')
```
constraints¶ (Mapping, optional) –
Mapping of energy system files to constraint group strings. Used for aggregating different constraints and constraint groups for each component.

Default is:
```
constraints={
    'expansion': ('costs.xml', 'emissions.xml',),
    'linear': ('flow_rates.xml', 'gradients.xml'),
    'milp': ('status.xml', 'status_changing.xml')}
```
Note

A logger.WARNING is triggered in case non existant constraint files are passed.

Example

Minimum working example:

(Optional) Change spellings logging level used by spellings.get_from to debug for decluttering output:

>>> import tessif.frused.configurations as configurations
>>> configurations.spellings_logging_level = 'debug'

Name the top level folder where your tessif energy systems resides in:

>>> import os
>>> from tessif.frused.paths import example_dir
>>> folder = os.path.join(
...     example_dir, 'application', 'verification_scenarios')

Construct the constraint dictionairy according to your needs (make sure the lowest level is an iterable of strings to get expectred results):
```
>>> chosen_constraints = {'linear': ('flow_rates_max.py', )}
```

Choose a parser depending on your energy system file formats:

>>> import tessif.parse
>>> chosen_parser = tessif.parse.python_mapping

Chose the components and the model you wish to verify:

>>> chosen_components = ('source', )
>>> chosen_model = 'oemof'

Initialize the Verificier:

>>> import tessif.verify
>>> verificier = tessif.verify.Verificier(
...     path=folder,
...     model=chosen_model,
...     components=chosen_components,
...     constraints=chosen_constraints,
...     parser=chosen_parser)

Show the network graph of the analyzed es:

>>> import matplotlib.pyplot as plt
>>> es_graph = verificier.plot_energy_system_graph(
...     component='source',
...     constraint_type='linear',
...     constraint_group='flow_rates_max',
...     node_color={
...         'centralbus': '#9999ff',
...         'source_1': '#ff7f0e',
...         'source_2': '#2ca02c',
...         'sink': '#1f77b4'
...     },
...     node_size={'centralbus': 5000},
... )
>>> # es_graph.show()  # commented out for simpler doctesting

Show the numerical results:

>>> print(verificier.numerical_results[
...     'source']['linear']['flow_rates_max'])
centralbus           source1  source2  sink1
2022-01-01 00:00:00    -15.0    -35.0   50.0
2022-01-01 01:00:00    -15.0    -35.0   50.0
2022-01-01 02:00:00    -15.0    -35.0   50.0
2022-01-01 03:00:00    -15.0    -35.0   50.0
2022-01-01 04:00:00    -15.0    -35.0   50.0
2022-01-01 05:00:00    -15.0    -35.0   50.0
2022-01-01 06:00:00    -15.0    -35.0   50.0
2022-01-01 07:00:00    -15.0    -35.0   50.0
2022-01-01 08:00:00    -15.0    -35.0   50.0
2022-01-01 09:00:00    -15.0    -35.0   50.0

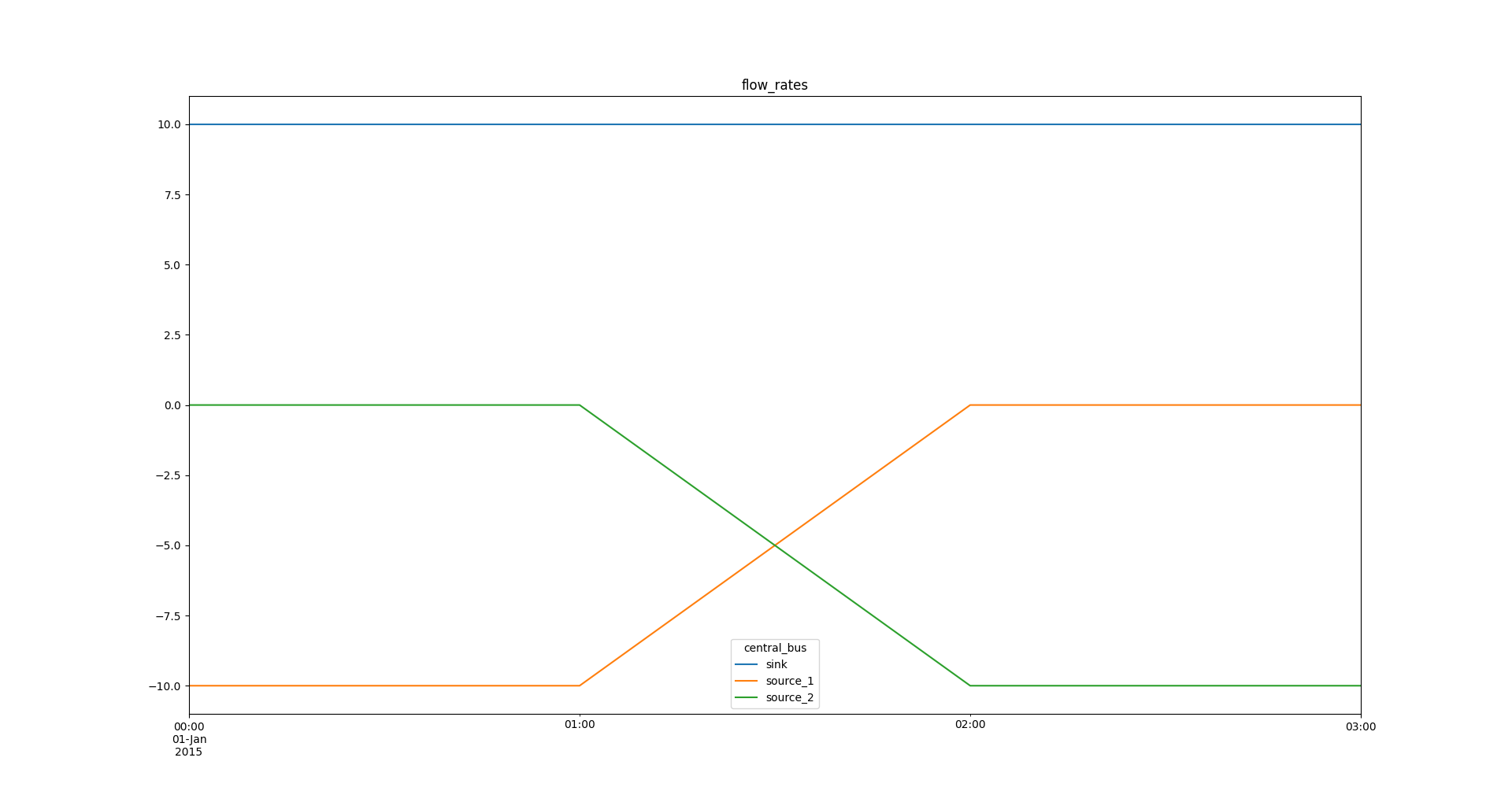

Show the graphical results:

>>> graphical_result_plot = verificier.graphical_results[
...     'source']['linear']['flow_rates_max']
>>> # graphical_result_plot.show()  # commented out for doctesting

property components: Tuple of strings representing the verified components. ('connector', 'sink', 'source', 'storage', 'transformer',) at default parameterization.

property constraints

Mapping of energy system file names to constraint group strings. Used for verification. At default parameterization this looks like:

constraints={
    'expansion': ('costs.xml', 'emissions.xml',),
    'linear': ('flow_rates.xml', 'gradients.xml'),
    'milp': ('status.xml', 'status_changing.xml')}

property constraint_types: Tuple of strings representing the verified constraint types. ('expansion', 'linear', 'milp') at default parameterization.

property constraint_groups

Tuple of the constraints and constraint files subject to verification.

At default parameterization this looks like:

('costs.xml', 'emissions.xml', 'flow_rates.xml',
 'gradients.xml', 'status.xml', 'status_changing.xml')

property energy_systems

Triple nested Mapping of tessif energy system objects representing the analyzed energy systems.

At default parameterization, this mapping looks like:

results = {
    'connector': {
        'expansion': {
            'costs': Tessif-EnergySystem-Object,
            'emissions': Tessif-EnergySystem-Object,},
        'linear': {
            'flow_rates': Tessif-EnergySystem-Object,
            'gradients': Tessif-EnergySystem-Object,},
        'milp': {
            'status': Tessif-EnergySystem-Object,
            'status_changing': Tessif-EnergySystem-Object,}
    }
   ' sink': ...
}

property graphs

Triple nested Mapping of networkx.DiGraph objects representing the analyzed energy systems.

At default parameterization, this mapping looks like:

results = {
    'connector': {
        'expansion': {
            'costs': networkx.DiGraph-Object,
            'emissions': networkx.DiGraph-Object,},
        'linear': {
            'flow_rates': networkx.DiGraph-Object,
            'gradients': networkx.DiGraph-Object,},
        'milp': {
            'status': networkx.DiGraph-Object,
            'status_changing': networkx.DiGraph-Object,}
    }
    'sink': ...
}

property graphical_results

Dictionary holding the Verificier’s graphical results. At default parameterization, this dictionary would look like:

results = {
    'connector': {
        'expansion': {
            'costs': matplotlib.figure.Figure,
            'emissions': matplotlib.figure.Figure,},
        'linear': {
            'flow_rates': matplotlib.figure.Figure,
            'gradients': matplotlib.figure.Figure,},
        'milp': {
            'status': matplotlib.figure.Figure,
            'status_changing': matplotlib.figure.Figure,}
    }
    'sink': ...
}

property numerical_results

Dictionary holding the Verificier’s numerical results. At default parameterization, this dictionary would look like:

results = {
    'connector': {
        'expansion': {
            'costs': DataFrame,
            'emissions': DataFrame,},
        'linear': {
            'flow_rates': DataFrame,
            'gradients': DataFrame,},
        'milp': {
            'status': DataFrame,
            'status_changing': DataFrame,}
    }
    'sink': ...
}

property results

Dictionary holding all of the Verificier’s results. At default parameterization, this dictionary would look like:

results = {
    'connector': {
        'expansion': {
            'costs': (DataFrame, matplotlib.figure.Figure),
            'emissions': (DataFrame, matplotlib.figure.Figure),},
        'linear': {
            'flow_rates': (DataFrame, matplotlib.figure.Figure),
            'gradients': (DataFrame, matplotlib.figure.Figure),},
        'milp': {
            'status': (DataFrame, matplotlib.figure.Figure),
            'status_changing': (...),}
    }
    'sink': ...
}

plot_energy_system_graph(component, constraint_type, constraint_group, title='default', **kwargs)[source]

Plot the networkx representation of an energy system subject to verification.

Parameters:

component¶ (str) –
String specifying a component as in components of which the graph object is to be plotted.

At default parameterization this would be one of:
```
{'connector', 'source', 'sink', 'storage', 'transformer'}
```
constraint_type¶ (str) –
String specifying a constraint type as in constraint_types of which the graph object is to be plotted.

At default parameterization this would be one of:
```
{'expansion', 'linear', 'milp'}
```
constraint_group¶ (str) –
String specifying a constraint group as in constraint_groups of which the graph object is to be plotted.

At default parameterization this would be one of:
```
{'costs.xml', 'emissions.xml', 'flow_rates.xml',
 'gradients.xml', 'status.xml', 'status_changing.xml'}
```
title¶ (str, None, default='default') –
String specifying the plot title.

Defaults to:
```
Energy System for Verifying the 'constraint_group' Constraints
```

Returns:

nxgraph – Created networkx graph object.

Return type:

matplotlib.figure.Figure
